K162 - Pneumatic Piston Seal
K162 is a single-acting pneumatic piston seal. It provides additional cushioning for pneumatic cylinders, preventing metal-to-metal contact at the end of the stroke, while reducing impact and noise, allowing the piston to decelerate smoothly. Produced from high-performance polyurethane, K162 combines low friction, excellent wear resistance, and easy installation, providing long-service life and reliable sealing performance in pneumatic applications.
优势
应用领域
优势
• Low friction
• Wear resistance
• Easy installation
• Long service life
• Wear resistance
• Easy installation
• Long service life
应用领域
• Pneumatic cylinders
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
PU
PU9204
16
-40/+80 °C2
1

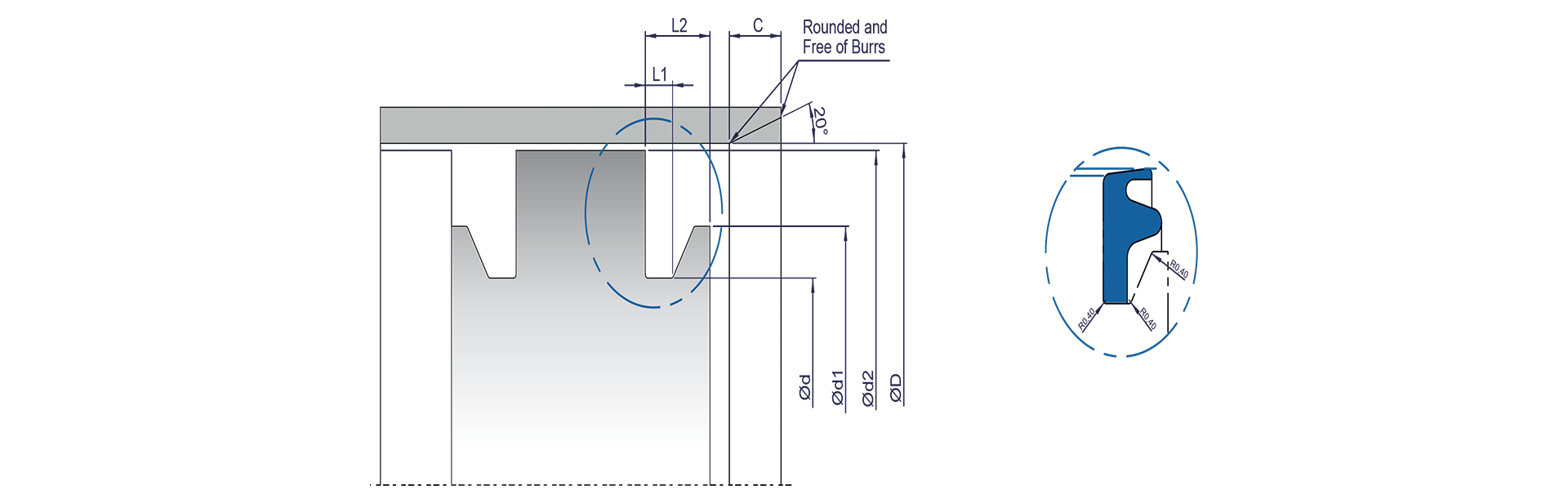

| ØD | Ød | Ød1 | Ød2 | L1 | L2 | C | 材料 | Kastaş 代码 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| K162-038 | 1,5 | 0,810 | 1,498 | 1,050 | 0,138 | 0,256 | 0,270 | PU9204 | 10060338 | |
| K162-050 | 2 | 1,202 | 1,998 | 1,440 | 0,138 | 0,256 | 0,270 | PU9204 | 10060339 | |
| K162-063 | 2,5 | 1,640 | 2,498 | 1,925 | 0,157 | 0,315 | 0,270 | PU9204 | 10060340 | |
| K162-082 | 3,25 | 2,150 | 3,247 | 2,550 | 0,157 | 0,315 | 0,315 | PU9204 | 10060341 | |
| K162-101 | 4 | 2,810 | 3,995 | 3,268 | 0,157 | 0,315 | 0,315 | PU9204 | 10060342 | |
| K162-127 | 5 | 3,525 | 4,995 | 4,095 | 0,197 | 0,375 | 0,315 | PU9204 | 10060343 | |
| K162-152 | 6 | 4,525 | 5,995 | 5,095 | 0,197 | 0,375 | 0,315 | PU9204 | 10060346 | |
| K162-203 | 8 | 6,525 | 7,995 | 7,095 | 0,197 | 0,375 | 0,315 | PU9204 | 10060347 |
