KKBS
KKBS - Guiding Tape
KKBS guiding tapes are an advanced solution providing high durability and reliability in linear, oscillating, and slow rotary movements. Their special composite structure, synthesized with optimal process parameters, is manufactured by combining synthetic fibers and polyester resin in ideal proportions. This ensures improved mechanical strength, reduced wear, and superior performance. Available in a wide range of dimensions, KKBS guiding tapes o er a durable and e cient guiding solution for demanding hydraulic applications.
Преимущества
Область применения
Преимущества
• Excellent low-friction performance
• High load-bearing capacity
• Maintains shape and dimensional stability
• Minimal swelling
• Precision manufacturing with tight tolerances
• Flexible dimensions available (cut-to-size options)
• High load-bearing capacity
• Maintains shape and dimensional stability
• Minimal swelling
• Precision manufacturing with tight tolerances
• Flexible dimensions available (cut-to-size options)
Область применения
• Mobile machinery
• Mining industry
• Excavators
• Presses
• Heavy duty cylinders
• Mining industry
• Excavators
• Presses
• Heavy duty cylinders
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
SYNTHETIC FIBER, POLYESTER RESIN
PR6504
-40/120
1.0

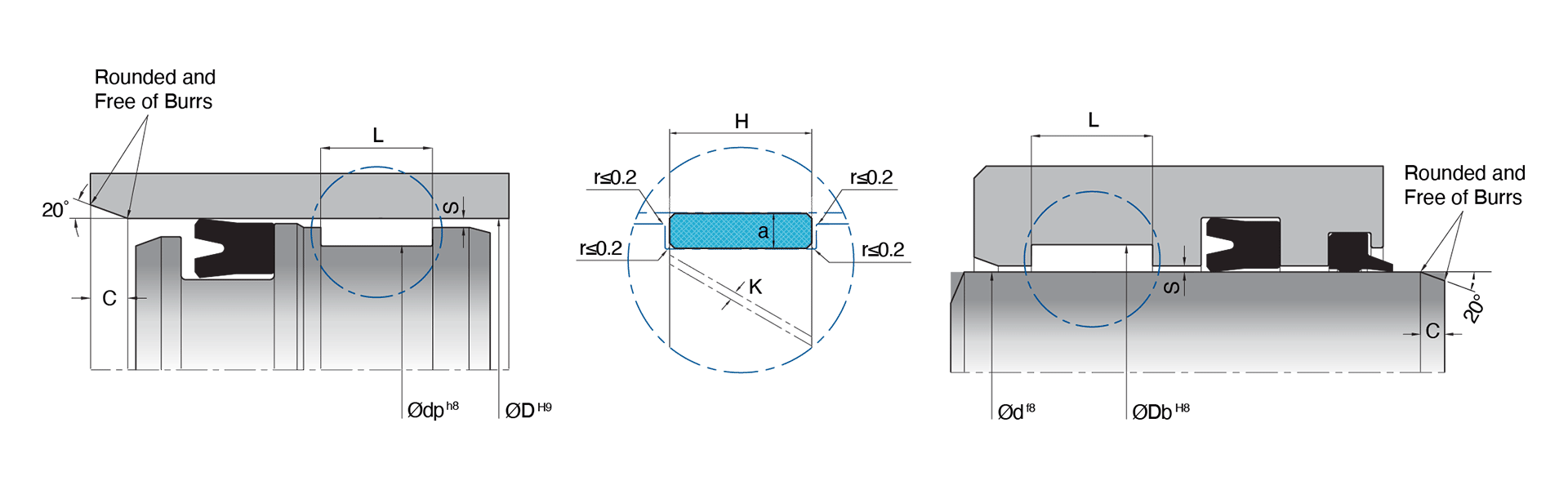

| d1 min | d1 max | D1 min | D1 max | S | L1 | МАТЕРИАЛ | Код | ||
|---|---|---|---|---|---|---|---|---|---|
| KKBS-2X10 | 35 | 70 | 74 | 160 | 2 | 10 | PR6504 | 20008458 | |
| KKBS-2X10/1 | 70 | 150 | 154 | 310 | 2 | 10 | PR6504 | 20008459 | |
| KKBS-2X15 | 35 | 50 | 54 | 110 | 2 | 15 | PR6504 | 20008460 | |
| KKBS-2X15/1 | 50 | 100 | 104 | 210 | 2 | 15 | PR6504 | 20008461 | |
| KKBS-2X15/2 | 90 | 180 | 184 | 370 | 2 | 15 | PR6504 | 20008462 | |
| KKBS-2,5X5,6 | 25 | 50 | 55 | 110 | 2.5 | 5.6 | PR6504 | 20008463 | |
| KKBS-2,5X5,6/1 | 50 | 100 | 105 | 210 | 2.5 | 5.6 | PR6504 | 20008464 | |
| KKBS-2,5X9,7 | 35 | 70 | 75 | 150 | 2.5 | 9.7 | PR6504 | 20008465 | |
| KKBS-2,5X9,7/1 | 70 | 150 | 155 | 310 | 2.5 | 9.7 | PR6504 | 20008466 | |
| KKBS-2,5X15 | 40 | 50 | 55 | 110 | 2.5 | 15 | PR6504 | 20008467 | |
| KKBS-2,5X15/1 | 50 | 100 | 105 | 210 | 2.5 | 15 | PR6504 | 20008468 | |
| KKBS-2,5X15/2 | 90 | 180 | 185 | 370 | 2.5 | 15 | PR6504 | 20008469 | |
| KKBS-2,5X20 | 50 | 80 | 85 | 170 | 2.5 | 20 | PR6504 | 20008470 | |
| KKBS-2,5X20/1 | 75 | 150 | 155 | 310 | 2.5 | 20 | PR6504 | 20008471 | |
| KKBS-2,5X20/2 | 125 | 250 | 255 | 510 | 2.5 | 20 | PR6504 | 20008472 | |
| KKBS-2,5X25 | 60 | 80 | 85 | 170 | 2.5 | 25 | PR6504 | 20008473 | |
| KKBS-2,5X25/1 | 70 | 150 | 155 | 310 | 2.5 | 25 | PR6504 | 20008474 | |
| KKBS-2,5X25/2 | 125 | 250 | 255 | 510 | 2.5 | 25 | PR6504 | 20008475 | |
| KKBS-3X9,7 | 40 | 50 | 56 | 100 | 3 | 9.7 | PR6504 | 20008476 | |
| KKBS-3X9,7/1 | 50 | 100 | 106 | 210 | 3 | 9.7 | PR6504 | 20008477 | |
| KKBS-3X9,7/2 | 100 | 150 | 156 | 310 | 3 | 9.7 | PR6504 | 20008478 | |
| KKBS-3X20 | 55 | 80 | 86 | 170 | 3 | 20 | PR6504 | 20008479 | |
| KKBS-3X20/1 | 80 | 150 | 156 | 310 | 3 | 20 | PR6504 | 20008480 | |
| KKBS-3X20/2 | 140 | 250 | 256 | 510 | 3 | 20 | PR6504 | 20008481 | |
| KKBS-4X9,7 | 60 | 80 | 88 | 170 | 4 | 9.7 | PR6504 | 20008482 | |
| KKBS-4X9,7/1 | 80 | 150 | 158 | 310 | 4 | 9.7 | PR6504 | 20008483 | |
| KKBS-4X9,7/2 | 150 | 250 | 258 | 510 | 4 | 9.7 | PR6504 | 20008484 | |
| KKBS-4X20 | 60 | 80 | 88 | 170 | 4 | 20 | PR6504 | 20008485 | |
| KKBS-4X20/1 | 80 | 150 | 158 | 310 | 4 | 20 | PR6504 | 20008486 | |
| KKBS-4X20/2 | 150 | 250 | 258 | 510 | 4 | 20 | PR6504 | 20008487 | |
| KKBS-4X25 | 120 | 150 | 158 | 310 | 4 | 25 | PR6504 | 20008488 | |
| KKBS-4X25/1 | 150 | 250 | 258 | 510 | 4 | 25 | PR6504 | 20008489 | |
| KKBS-4X30 | 120 | 150 | 158 | 310 | 4 | 30 | PR6504 | 20008490 | |
| KKBS-4X30/1 | 150 | 250 | 258 | 510 | 4 | 30 | PR6504 | 20008491 |
