K35
K35 - Kompakt Stangendichtsatz

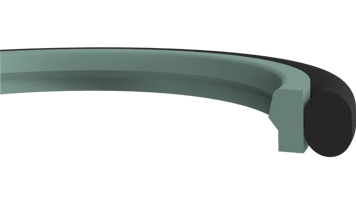

K35 singe acting rod seal consists of PTFE sealing ring and energizer elastomer o-ring. K35 is preffered in many applications as a single rod seal or as tandem while offering good sealing performance and low friction.
Vorteile
Anwendungsbereich
Vorteile
• Low friction and free of stick-slip
• Excellent sealing at static and dynamic conditions
• Long service life
• High extrusion resistance
• Works at high speeds and frequencies
• Designed for grooves according to ISO 7425/1
• Excellent sealing at static and dynamic conditions
• Long service life
• High extrusion resistance
• Works at high speeds and frequencies
• Designed for grooves according to ISO 7425/1
Anwendungsbereich
• Cranes
• Injection moulding machines
• Hydraulic press cylinders
• Forklifts
• Construction machinery
• Servo cylinders
• Hydraulic breakers
• Wind turbines
• Automotive industry
• Injection moulding machines
• Hydraulic press cylinders
• Forklifts
• Construction machinery
• Servo cylinders
• Hydraulic breakers
• Wind turbines
• Automotive industry
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
PTFE
NBR
PU
NBR
NBR
PU
NBR
PT6003
NB7001
PU6001
NB7001
NB7001
PU6001
NB7001
400
-30/+105
-30/+100
-30/+100
15.0
1.0
1.0
| d (f8) | D (H9) | L (+0.2/-0) | r | C | O-Ring | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|---|---|---|
| K35-002.5 | 2.5 | 6.9 | 2.2 | 0.4 | 2 | 3.68x1.78 | PT6003 | 10017215 | |
| K35-003 | 3 | 7.9 | 2.2 | 0.4 | 2 | 4.48x1.78 | PT6003 | 10017219 | |
| K35-004 | 4 | 8.9 | 2.2 | 0.4 | 2 | 5.28x1.78 | PT6003 | 10017222 | |
| K35-005 | 5 | 9.9 | 2.2 | 0.4 | 2 | 6.75x1.78 | PT6003 | 10017224 | |
| K35-006 | 6 | 10.9 | 2.2 | 0.4 | 2 | 7.66x1.78 | PT6003 | 10017227 | |
| K35-008 | 8 | 12.9 | 2.2 | 0.4 | 2 | 9.66x1.78 | PT6003 | 10017231 | |
| K35-008/1 | 8 | 15.3 | 3.2 | 0.6 | 2.5 | 10.78x2.62 | PT6003 | 10017232 | |
| K35-009 | 9 | 16.2 | 3.2 | 0.6 | 2.5 | 11.91x2.62 | PT6003 | 10017233 | |
| K35-009/1 | 9 | 13.9 | 2.2 | 0.4 | 2 | 10.82x1.78 | PT6003 | 10017234 | |
| K35-010 | 10 | 14.9 | 2.2 | 0.4 | 2 | 11.11x1.78 | PT6003 | 10017235 | |
| K35-010/1 | 10 | 17.3 | 3.2 | 0.6 | 2.5 | 13.10x2.62 | PT6003 | 10017238 | |
| K35-012 | 12 | 19.3 | 3.2 | 0.6 | 2.5 | 13.95x2.62 | PT6003 | 10017240 | |
| K35-012/1 | 12 | 16.9 | 2.2 | 0.4 | 2 | 14.00x1.78 | PT6003 | 10017243 | |
| K35-012.7 | 12.7 | 17.6 | 2.2 | 0.4 | 2 | 14.00x1.78 | PT6003 | 10017242 | |
| K35-014 | 14 | 21.3 | 3.2 | 0.6 | 2.5 | 17.13x2.62 | PT6003 | 10017244 | |
| K35-014/1 | 14 | 18.9 | 2.2 | 0.4 | 2 | 15.60x1.78 | PT6003 | 10017247 | |
| K35-015 | 15 | 19.9 | 2.2 | 0.4 | 2 | 17.17x1.78 | PT6003 | 10017249 | |
| K35-015/1 | 15 | 22.3 | 3.2 | 0.6 | 2.5 | 17.86x2.62 | PT6003 | 10017250 | |
| K35-016 | 16 | 23.3 | 3.2 | 0.6 | 2.5 | 18.72x2.62 | PT6003 | 10017253 | |
| K35-016/1 | 16 | 20.9 | 2.2 | 0.4 | 2 | 17.17x1.78 | PT6003 | 10017255 | |
| K35-018 | 18 | 25.3 | 3.2 | 0.6 | 2.5 | 20.29x2.62 | PT6003 | 10017259 | |
| K35-018/1 | 18 | 22.9 | 2.2 | 0.4 | 2 | 18.77x1.78 | PT6003 | 10017261 | |
| K35-019 | 19 | 29.7 | 4.2 | 1 | 3.5 | 23.4x3.53 | PT6003 | 10017264 | |
| K35-020 | 20 | 30.7 | 4.2 | 1 | 3.5 | 24.99x3.53 | PT6003 | 10017267 | |
| K35-020/1 | 20 | 27.3 | 3.2 | 0.6 | 2.5 | 22.22x2.62 | PT6003 | 10017270 | |
| K35-022 | 22 | 32.7 | 4.2 | 1 | 3.5 | 26.58x3.53 | PT6003 | 10017276 | |
| K35-022/1 | 22 | 29.5 | 3.2 | 0.6 | 2.5 | 25.07x2.62 | PT6003 | 10017279 | |
| K35-022/2 | 22 | 29.3 | 3.2 | 0.6 | 2.5 | 25.07x2.62 | PT6003 | 10017281 | |
| K35-025 | 25 | 35.7 | 4.2 | 1 | 3.5 | 29.75x3.53 | PT6003 | 10017284 | |
| K35-025/1 | 25 | 32.3 | 3.2 | 0.6 | 2.5 | 26.64x2.62 | PT6003 | 10017292 | |
| K35-025.40 | 25.4 | 36.1 | 4.2 | 1 | 3.5 | 29.75x3.53 | PT6003 | 10017290 | |
| K35-025.40/1 | 25.4 | 32.7 | 3.2 | 0.6 | 2.5 | 28.25x2.62 | PT6003 | 10017289 | |
| K35-026 | 26 | 36.7 | 4.2 | 1 | 3.5 | 29.75x3.53 | PT6003 | 10017295 | |
| K35-028 | 28 | 38.7 | 4.2 | 1 | 3.5 | 32.92x3.53 | PT6003 | 10017296 | |
| K35-028 PU | 28 | 38.7 | 4.2 | 1 | 3.5 | 32.92x3.53 | PU6001 | 10017298 | |
| K35-028/1 | 28 | 35.3 | 3.2 | 0.6 | 2.5 | 29.82x2.62 | PT6003 | 10017301 | |
| K35-030 | 30 | 40.7 | 4.2 | 1 | 3.5 | 34.52x3.53 | PT6003 | 10017305 | |
| K35-030/1 | 30 | 37.3 | 3.2 | 0.6 | 2.5 | 33.00x2.62 | PT6003 | 10017310 | |
| K35-032 | 32 | 42.7 | 4.2 | 1 | 3.5 | 36.10x3.53 | PT6003 | 10017314 | |
| K35-032/1 | 32 | 39.3 | 3.2 | 0.6 | 2.5 | 34.59x2.62 | PT6003 | 10017316 | |
| K35-035 | 35 | 45.7 | 4.2 | 1 | 3.5 | 39.69x3.53 | PT6003 | 10017321 | |
| K35-035/1 | 35 | 42.3 | 3.2 | 0.6 | 2.5 | 37.77x2.62 | PT6003 | 10017324 | |
| K35-036 | 36 | 46.7 | 4.2 | 1 | 3.5 | 40.87x3.53 | PT6003 | 10017326 | |
| K35-036 PU | 36 | 46.7 | 4.2 | 1 | 3.5 | 40.87x3.53 | PU6001 | 10017329 | |
| K35-036/1 | 36 | 43.3 | 3.2 | 0.6 | 2.5 | 37.77x2.62 | PT6003 | 10017331 | |
| K35-036/1 PU | 36 | 43.3 | 3.2 | 0.6 | 2.5 | 37.77x2.62 | PU6001 | 10017333 | |
| K35-037 | 37 | 47.7 | 4.2 | 1 | 3.5 | 41.28x3.53 | PT6003 | 10017338 | |
| K35-038 | 38 | 48.8 | 4.2 | 1 | 3.5 | 42.86x3.53 | PT6003 | 10017339 | |
| K35-038/1 | 38 | 53.1 | 6.3 | 1.3 | 5.5 | 43.82x5.33 | PT6003 | 10017341 | |
| K35-040 | 40 | 55.1 | 6.3 | 1.3 | 5.5 | 47x5.33 | PT6003 | 10017344 | |
| K35-040 PU | 40 | 55.1 | 6.3 | 1.3 | 5.5 | 47x5.33 | PU6001 | 10017346 | |
| K35-040/1 | 40 | 50.7 | 4.2 | 1 | 3.5 | 44.45x3.53 | PT6003 | 10017350 | |
| K35-040/1 PU | 40 | 50.7 | 4.2 | 1 | 3.5 | 44.45x3.53 | PU6001 | 10017352 | |
| K35-041 | 41 | 51.7 | 4.2 | 1 | 3.5 | 46.04x3.53 | PT6003 | 10017358 | |
| K35-042 | 42 | 52.7 | 4.2 | 1 | 3.5 | 46.04x3.53 | PT6003 | 10017359 | |
| K35-042/1 | 42 | 57.1 | 6.3 | 1.3 | 5.5 | 47.00x5.33 | PT6003 | 10017361 | |
| K35-043 | 43 | 53.7 | 4.2 | 1 | 3.5 | 47.22x3.53 | PT6003 | 10017363 | |
| K35-044.45 | 44.45 | 59.55 | 6.3 | 1.3 | 5.5 | 50.16x5.33 | PT6003 | 10017366 | |
| K35-045 | 45 | 60.1 | 6.3 | 1.3 | 5.5 | 50.16x5.33 | PT6003 | 10017367 | |
| K35-045/1 | 45 | 55.7 | 4.2 | 1 | 3.5 | 49.21x3.53 | PT6003 | 10017372 | |
| K35-047 | 47 | 57.7 | 4.2 | 1 | 3.5 | 50.8x3.53 | PT6003 | 10017379 | |
| K35-048 | 48 | 63.1 | 6.3 | 1.3 | 5.5 | 53.34x5.33 | PT6003 | 10017381 | |
| K35-048/1 | 48 | 58.7 | 4.2 | 1 | 3.5 | 52.39x3.53 | PT6003 | 10017383 | |
| K35-050 | 50 | 65.1 | 6.3 | 1.3 | 5.5 | 56.52x5.33 | PT6003 | 10017386 | |
| K35-050 PU | 50 | 65.1 | 6.3 | 1.3 | 5.5 | 56.52x5.33 | PU6001 | 10017389 | |
| K35-050/1 | 50 | 60.7 | 4.2 | 1 | 3.5 | 53.57x3.53 | PT6003 | 10017393 | |
| K35-050/1 PU | 50 | 60.7 | 4.2 | 1 | 3.5 | 53.57x3.53 | PU6001 | 10017395 | |
| K35-050.8 | 50.8 | 61.5 | 4.2 | 1 | 3.5 | 55.56x3.53 | PT6003 | 10017391 | |
| K35-052 | 52 | 62.7 | 4.2 | 1 | 3.5 | 56.74x3.53 | PT6003 | 10017399 | |
| K35-052/1 | 52 | 67.1 | 6.3 | 1.3 | 5.5 | 56.52x5.33 | PT6003 | 10017402 | |
| K35-055 | 55 | 70.1 | 6.3 | 1.3 | 5.5 | 59.70x5.33 | PT6003 | 10017405 | |
| K35-055/1 | 55 | 65.7 | 4.2 | 1 | 3.5 | 58.74x3.53 | PT6003 | 10017409 | |
| K35-056 | 56 | 71.1 | 6.3 | 1.3 | 5.5 | 62.87x5.33 | PT6003 | 10017410 | |
| K35-056 PU | 56 | 71.1 | 6.3 | 1.3 | 5.5 | 62.87x5.33 | PU6001 | 10017412 | |
| K35-056/1 | 56 | 66.7 | 4.2 | 1 | 3.5 | 59.92x3.53 | PT6003 | 10017414 | |
| K35-057 | 57 | 72.1 | 6.3 | 1.3 | 5.5 | 62.87x5.33 | PT6003 | 10017416 | |
| K35-060 | 60 | 75.1 | 6.3 | 1.3 | 5.5 | 66.04x5.33 | PT6003 | 10017423 | |
| K35-060 PU | 60 | 75.1 | 6.3 | 1.3 | 5.5 | 66.04x5.33 | PU6001 | 10017427 | |
| K35-060/1 | 60 | 70.7 | 4.2 | 1 | 3.5 | 63.09x3.53 | PT6003 | 10017433 | |
| K35-063 | 63 | 78.1 | 6.3 | 1.3 | 5.5 | 69.22x5.33 | PT6003 | 10017440 | |
| K35-063 PU | 63 | 78.1 | 6.3 | 1.3 | 5.5 | 69.22x5.33 | PU6001 | 10017442 | |
| K35-063/1 | 63 | 73.7 | 4.2 | 1 | 3.5 | 66.27x3.53 | PT6003 | 10017447 | |
| K35-063.5 | 63.5 | 78.6 | 6.3 | 1.3 | 5.5 | 69.22x5.33 | PT6003 | 10017445 | |
| K35-065 | 65 | 80.1 | 6.3 | 1.3 | 3.5 | 72.40x5.33 | PT6003 | 10017449 | |
| K35-065/1 | 65 | 75.7 | 4.2 | 1 | 3.5 | 69.85x3.53 | PT6003 | 10017451 | |
| K35-067 | 67 | 82.1 | 6.3 | 1.3 | 5.5 | 72.40x5.33 | PT6003 | 10017452 | |
| K35-068 | 68 | 83.1 | 6.3 | 1.3 | 5.5 | 72.40x5.33 | PT6003 | 10017453 | |
| K35-068/1 | 68 | 78.7 | 4.2 | 1 | 3.5 | 72.62x3.53 | PT6003 | 10017455 | |
| K35-070 | 70 | 85.1 | 6.3 | 1.3 | 5.5 | 75.57x5.33 | PT6003 | 10017457 | |
| K35-070 PU | 70 | 85.1 | 6.3 | 1.3 | 5.5 | 75.57x5.33 | PU6001 | 10017459 | |
| K35-070/1 | 70 | 80.7 | 4.2 | 1 | 3.5 | 73.03x3.53 | PT6003 | 10017463 | |
| K35-070/2 | 70 | 90.5 | 8.1 | 1.8 | 7.5 | 77.00x7 | PT6003 | 10017465 | |
| K35-073 | 73 | 88.1 | 6.3 | 1.3 | 5.5 | 78.74x5.33 | PT6003 | 10017468 | |
| K35-075 | 75 | 90.1 | 6.3 | 1.3 | 5.5 | 79.77x5.33 | PT6003 | 10017472 | |
| K35-075/2 | 75 | 85.7 | 4.2 | 1 | 3.5 | 78.97x3.53 | PT6003 | 10017475 | |
| K35-076.2 | 76.2 | 91.3 | 6.3 | 1.3 | 5.5 | 81.92x5.33 | PT6003 | 10017476 | |
| K35-076.2 PU | 76.2 | 91.3 | 6.3 | 1.3 | 5.5 | 81.92x5.33 | PU6001 | 10017477 | |
| K35-078 | 78 | 93.1 | 6.3 | 1.3 | 5.5 | 81.92x5.33 | PT6003 | 10017479 | |
| K35-080 | 80 | 95.1 | 6.3 | 1.3 | 5.5 | 85.09x5.33 | PT6003 | 10017481 | |
| K35-080 PU | 80 | 95.1 | 6.3 | 1.3 | 5.5 | 85.09x5.33 | PU6001 | 10017483 | |
| K35-080/1 | 80 | 90.7 | 4.2 | 1 | 3.5 | 85.32x3.53 | PT6003 | 10017485 | |
| K35-085 | 85 | 100.1 | 6.3 | 1.3 | 5.5 | 91.44x5.33 | PT6003 | 10017491 | |
| K35-085 PU | 85 | 100.1 | 6.3 | 1.3 | 5.5 | 91.44x5.33 | PU6001 | 10017493 | |
| K35-085/1 | 85 | 95.7 | 4.2 | 1 | 3.5 | 88.50x3.53 | PT6003 | 10017494 | |
| K35-085/2 | 85 | 105.5 | 8.1 | 1.8 | 7.5 | 92.00x7 | PT6003 | 10017495 | |
| K35-090 | 90 | 105.1 | 6.3 | 1.3 | 5.5 | 94.62x5.33 | PT6003 | 10017500 | |
| K35-090 PU | 90 | 105.1 | 6.3 | 1.3 | 5.5 | 94.62x5.33 | PU6001 | 10017503 | |
| K35-090/1 | 90 | 100.7 | 4.2 | 1 | 3.5 | 94.84x3.53 | PT6003 | 10017504 | |
| K35-092 | 92 | 107.1 | 6.3 | 1.3 | 5.5 | 97.80x5.33 | PT6003 | 10017505 | |
| K35-095 | 95 | 110.1 | 6.3 | 1.3 | 5.5 | 100.97x5.33 | PT6003 | 10017506 | |
| K35-095 PU | 95 | 110.1 | 6.3 | 1.3 | 5.5 | 100.97x5.33 | PU6001 | 10017508 | |
| K35-095/1 | 95 | 115.5 | 8.1 | 1.8 | 7.5 | 104.14x6.99 | PT6003 | 10017509 | |
| K35-100 | 100 | 115.1 | 6.3 | 1.3 | 5.5 | 104.14x5.33 | PT6003 | 10017512 | |
| K35-100 PU | 100 | 115.1 | 6.3 | 1.3 | 5.5 | 104.14x5.33 | PU6001 | 10017514 | |
| K35-100/1 | 100 | 110.7 | 4.2 | 1 | 3.5 | 104.37x3.53 | PT6003 | 10017517 | |
| K35-105 | 105 | 125.5 | 8.1 | 1.8 | 7.5 | 113.67x6.99 | PT6003 | 10017521 | |
| K35-105/1 | 105 | 120.1 | 6.3 | 1.3 | 5.5 | 110.49x5.33 | PT6003 | 10017522 | |
| K35-105/1 PU | 105 | 120.1 | 6.3 | 1.3 | 5.5 | 110.49x5.33 | PU6001 | 10017523 | |
| K35-108 | 108 | 123.1 | 6.3 | 1.3 | 5.5 | 113.67x5.33 | PT6003 | 10017528 | |
| K35-110 | 110 | 125.1 | 6.3 | 1.3 | 5.5 | 116.84x5.33 | PT6003 | 10017531 | |
| K35-110 PU | 110 | 125.1 | 6.3 | 1.3 | 5.5 | 116.84x5.33 | PU6001 | 10017533 | |
| K35-110/1 | 110 | 130.5 | 8.1 | 1.8 | 7.5 | 116.84x6.99 | PT6003 | 10017535 | |
| K35-110/2 | 110 | 120.7 | 4.2 | 1 | 3.5 | 113.90x3.53 | PT6003 | 10017537 | |
| K35-113 | 113 | 128.1 | 6.3 | 1.3 | 5.5 | 117.48x5.33 | PT6003 | 10017541 | |
| K35-115 | 115 | 130.1 | 6.3 | 1.3 | 5.5 | 120.02x5.33 | PT6003 | 10017543 | |
| K35-120 | 120 | 135.1 | 6.3 | 1.3 | 5.5 | 126.57x5.33 | PT6003 | 10017548 | |
| K35-120 PU | 120 | 135.1 | 6.3 | 1.3 | 5.5 | 126.57x5.33 | PU6001 | 10017550 | |
| K35-125 | 125 | 140.1 | 6.3 | 1.3 | 5.5 | 129.54x5.33 | PT6003 | 10017556 | |
| K35-125 PU | 125 | 140.1 | 6.3 | 1.3 | 5.5 | 129.54x5.33 | PU6001 | 10017558 | |
| K35-125/1 | 125 | 145.5 | 8.1 | 1.8 | 7.5 | 132.72x6.99 | PT6003 | 10017561 | |
| K35-127 | 127 | 142.1 | 6.3 | 1.3 | 5.5 | 130.20x5.33 | PT6003 | 10017563 | |
| K35-128.5 | 128.5 | 143.6 | 6.3 | 1.3 | 5.5 | 133.35x5.33 | PT6003 | 10017566 | |
| K35-130 | 130 | 145.1 | 6.3 | 1.3 | 5.5 | 135.90x5.33 | PT6003 | 10017567 | |
| K35-130 PU | 130 | 145.1 | 6.3 | 1.3 | 5.5 | 135.90x5.33 | PU6001 | 10017569 | |
| K35-130/1 | 130 | 150.5 | 8.1 | 1.8 | 7.5 | 139.07x6.99 | PT6003 | 10017572 | |
| K35-132 | 132 | 147.1 | 6.3 | 1.3 | 5.5 | 135.9x5.33 | PT6003 | 10017573 | |
| K35-133.35 PU | 133.35 | 148.45 | 6.3 | 1.3 | 5.5 | 135.9x5.33 | PT6003 | 10017576 | |
| K35-135 | 135 | 150.1 | 6.3 | 1.3 | 5.5 | 139.07x5.33 | PU6001 | 10017578 | |
| K35-137 | 137 | 152.1 | 6.3 | 1.3 | 5.5 | 142.24x5.33 | PT6003 | 10017582 | |
| K35-138 | 138 | 153.1 | 6.3 | 1.3 | 5.5 | 142.24x5.33 | PT6003 | 10017583 | |
| K35-140 | 140 | 155.1 | 6.3 | 1.3 | 5.5 | 145.42x5.33 | PT6003 | 10017585 | |
| K35-140 PU | 140 | 155.1 | 6.3 | 1.3 | 5.5 | 145.42x5.33 | PU6001 | 10017587 | |
| K35-140/1 | 140 | 160.5 | 8.1 | 1.8 | 7.5 | 145.42x6.99 | PT6003 | 10017589 | |
| K35-142 | 142 | 157.1 | 6.3 | 1.3 | 5.5 | 146.05x5.33 | PT6003 | 10017590 | |
| K35-145 | 145 | 160.1 | 6.3 | 1.3 | 5.5 | 151.77x5.33 | PT6003 | 10017595 | |
| K35-145/1 | 145 | 165.5 | 8.1 | 1.8 | 7.5 | 151.77x6.99 | PT6003 | 10017597 | |
| K35-147 | 147 | 162.1 | 6.3 | 1.3 | 5.5 | 151.77x5.33 | PT6003 | 10017598 | |
| K35-150 | 150 | 165.1 | 6.3 | 1.3 | 5.5 | 155.00x5.33 | PT6003 | 10017599 | |
| K35-150 PU | 150 | 165.1 | 6.3 | 1.3 | 5.5 | 155.00x5.33 | PU6001 | 10017601 | |
| K35-150/1 | 150 | 170.5 | 8.1 | 1.8 | 7.5 | 158.12x6.99 | PT6003 | 10017603 | |
| K35-153 | 153 | 168.1 | 6.3 | 1.3 | 5.5 | 158.12x5.33 | PT6003 | 10017604 | |
| K35-155 | 155 | 170.1 | 6.3 | 1.3 | 5.5 | 158.12x5.33 | PT6003 | 10017605 | |
| K35-157 | 157 | 172.1 | 6.3 | 1.3 | 5.5 | 161.3x5.33 | PT6003 | 10017609 | |
| K35-160 | 160 | 175.1 | 6.3 | 1.3 | 5.5 | 164.47x5.33 | PT6003 | 10017612 | |
| K35-160 PU | 160 | 175.1 | 6.3 | 1.3 | 5.5 | 164.47x5.33 | PU6001 | 10017614 | |
| K35-160/1 | 160 | 180.5 | 8.1 | 1.8 | 7.5 | 168.3x6.99 | PT6003 | 10017617 | |
| K35-165 | 165 | 180.1 | 6.3 | 1.3 | 5.5 | 170.82x5.33 | PT6003 | 10017621 | |
| K35-170 | 170 | 185.1 | 6.3 | 1.3 | 5.5 | 177.17x5.33 | PT6003 | 10017626 | |
| K35-170/1 | 170 | 190.5 | 8.1 | 1.8 | 7.5 | 177.17x6.99 | PT6003 | 10017628 | |
| K35-172 | 172 | 187.1 | 6.3 | 1.3 | 5.5 | 177.17x5.33 | PT6003 | 10017629 | |
| K35-172/1 | 172 | 192.5 | 8.1 | 1.8 | 7.5 | 177.17x6.99 | PT6003 | 10017631 | |
| K35-175 | 175 | 190.1 | 6.3 | 1.3 | 5.5 | 177.17x5.33 | PT6003 | 10017632 | |
| K35-177 | 177 | 192.1 | 6.3 | 1.3 | 5.5 | 183.52x5.33 | PT6003 | 10017634 | |
| K35-180 | 180 | 195.1 | 6.3 | 1.3 | 5.5 | 183.52x5.33 | PT6003 | 10017637 | |
| K35-180 PU | 180 | 195.1 | 6.3 | 1.3 | 5.5 | 183.52x5.33 | PU6001 | 10017639 | |
| K35-180/1 | 180 | 200.5 | 8.1 | 1.8 | 5.5 | 187.30x6.99 | PT6003 | 10017642 | |
| K35-185 | 185 | 200.1 | 6.3 | 1.3 | 5.5 | 189.87x5.33 | PT6003 | 10017644 | |
| K35-190 | 190 | 205.1 | 6.3 | 1.3 | 5.5 | 196.22x5.33 | PT6003 | 10017650 | |
| K35-192 | 192 | 207.1 | 6.3 | 1.3 | 5.5 | 196.22x5.33 | PT6003 | 10017654 | |
| K35-195 | 195 | 210.1 | 6.3 | 1.3 | 5.5 | 202.57x5.33 | PT6003 | 10017655 | |
| K35-200 | 200 | 220.5 | 8.1 | 1.8 | 7.5 | 208.92x6.99 | PT6003 | 10017661 | |
| K35-200/1 | 200 | 215.1 | 6.3 | 1.3 | 5.5 | 202.57x5.33 | PT6003 | 10017666 | |
| K35-205 | 205 | 225.5 | 8.1 | 1.8 | 7.5 | 215.27x6.99 | PT6003 | 10017668 | |
| K35-210 | 210 | 230.5 | 8.1 | 1.8 | 7.5 | 215.27x6.99 | PT6003 | 10017672 | |
| K35-212 | 212 | 232.5 | 8.1 | 1.8 | 7.5 | 215.27x6.99 | PT6003 | 10017678 | |
| K35-215 | 215 | 235.5 | 8.1 | 1.8 | 7.5 | 221.62x6.99 | PT6003 | 10017680 | |
| K35-220 | 220 | 240.5 | 8.1 | 1.8 | 7.5 | 227.97x6.99 | PT6003 | 10017682 | |
| K35-225 | 225 | 245.5 | 8.1 | 1.8 | 7.5 | 234.32x6.99 | PT6003 | 10017686 | |
| K35-230 | 230 | 250.5 | 8.1 | 1.8 | 7.5 | 240.67x6.99 | PT6003 | 10017690 | |
| K35-235 | 235 | 255.5 | 8.1 | 1.8 | 7.5 | 240.67x6.99 | PT6003 | 10017694 | |
| K35-240 | 240 | 260.5 | 8.1 | 1.8 | 7.5 | 247.00x6.99 | PT6003 | 10017695 | |
| K35-245 | 245 | 265.5 | 8.1 | 1.8 | 7.5 | 253.57x6.99 | PT6003 | 10017697 | |
| K35-250 | 250 | 270.5 | 8.1 | 1.8 | 7.5 | 259.70x6.99 | PT6003 | 10017698 | |
| K35-260 | 260 | 284 | 8.1 | 1.8 | 8 | 272.40x6.99 | PT6003 | 10017705 | |
| K35-260/1 | 260 | 280.5 | 8.1 | 1.8 | 7.5 | 266.07x6.99 | PT6003 | 10017707 | |
| K35-265 | 265 | 289 | 8.1 | 1.8 | 8 | 278.77x6.99 | PT6003 | 10017709 | |
| K35-270 | 270 | 294 | 8.1 | 1.8 | 8 | 278.77x6.99 | PT6003 | 10017711 | |
| K35-275 | 275 | 299 | 8.1 | 1.8 | 8 | 285.10x6.99 | PT6003 | 10017713 | |
| K35-280 | 280 | 304 | 8.1 | 1.8 | 8 | 291.47x6.99 | PT6003 | 10017716 | |
| K35-285 | 285 | 309 | 8.1 | 1.8 | 8 | 297.88x6.99 | PT6003 | 10017719 | |
| K35-290 | 290 | 314 | 8.1 | 1.8 | 8 | 297.88x6.99 | PT6003 | 10017721 | |
| K35-295 | 295 | 319 | 8.1 | 1.8 | 8 | 304.17x6.99 | PT6003 | 10017722 | |
| K35-300 | 300 | 324 | 8.1 | 1.8 | 8 | 310.50x6.99 | PT6003 | 10017725 | |
| K35-300/1 | 300 | 320.5 | 8.1 | 1.8 | 7.5 | 310.50x6.99 | PT6003 | 10017729 | |
| K35-310 | 310 | 334 | 8.1 | 1.8 | 8 | 316.87x6.99 | PT6003 | 10017731 | |
| K35-320 | 320 | 344 | 8.1 | 1.8 | 5.5 | 329.57x6.99 | PT6003 | 10017735 | |
| K35-330 | 330 | 354 | 8.1 | 1.8 | 8 | 342.27x6.99 | PT6003 | 10017740 | |
| K35-340 | 340 | 364 | 8.1 | 1.8 | 8 | 354.90x6.99 | PT6003 | 10017745 | |
| K35-345 | 345 | 369 | 8.1 | 1.8 | 8 | 354.90x6.99 | PT6003 | 10017746 | |
| K35-350 | 350 | 374 | 8.1 | 1.8 | 8 | 367.67x6.99 | PT6003 | 10017747 | |
| K35-360 | 360 | 384 | 8.1 | 1.8 | 8 | 367.67x6.99 | PT6003 | 10017752 | |
| K35-370 | 370 | 394 | 8.1 | 1.8 | 8 | 380.37x6.99 | PT6003 | 10017755 | |
| K35-375 | 375 | 399 | 8.1 | 1.8 | 8 | 380.37x6.99 | PT6003 | 10017757 | |
| K35-380 | 380 | 404 | 8.1 | 1.8 | 8 | 393.07x6.99 | PT6003 | 10017759 | |
| K35-390 | 390 | 414 | 8.1 | 1.8 | 8 | 405.26x6.99 | PT6003 | 10017761 | |
| K35-400 | 400 | 424 | 8.1 | 1.8 | 8 | 417.96x6.99 | PT6003 | 10017766 | |
| K35-405 | 405 | 429 | 8.1 | 1.8 | 8 | 417.96x6.99 | PT6003 | 10017768 | |
| K35-410 | 410 | 434 | 8.1 | 1.8 | 8 | 417.96x6.99 | PT6003 | 10017770 | |
| K35-420 | 420 | 444 | 8.1 | 1.8 | 8 | 430.66x6.99 | PT6003 | 10017771 | |
| K35-430 | 430 | 454 | 8.1 | 1.8 | 8 | 443.36x6.99 | PT6003 | 10017774 | |
| K35-435 | 435 | 459 | 8.1 | 1.8 | 8 | 443.36x6.99 | PT6003 | 10017777 | |
| K35-440 | 440 | 464 | 8.1 | 1.8 | 8 | 443.36x6.99 | PT6003 | 10017778 | |
| K35-450 | 450 | 474 | 8.1 | 1.8 | 8 | 456.06x6.99 | PT6003 | 10017780 | |
| K35-460 | 460 | 484 | 8.1 | 1.8 | 8 | 468.76x6.99 | PT6003 | 10017781 | |
| K35-470 | 470 | 494 | 8.1 | 1.8 | 8 | 481.46x6.99 | PT6003 | 10017783 | |
| K35-480 | 480 | 504 | 8.1 | 1.8 | 8 | 494.16x6.99 | PT6003 | 10017784 | |
| K35-490 | 490 | 514 | 8.1 | 1.8 | 8 | 494.16x6.99 | PT6003 | 10017786 | |
| K35-500 | 500 | 524 | 8.1 | 1.8 | 8 | 506.86x6.99 | PT6003 | 10017789 | |
| K35-510 | 510 | 534 | 8.1 | 1.8 | 8 | 532.26x6.99 | PT6003 | 10017791 | |
| K35-520 | 520 | 544 | 8.1 | 1.8 | 8 | 532.26x6.99 | PT6003 | 10017794 | |
| K35-530 | 530 | 554 | 8.1 | 1.8 | 8 | 532.26x6.99 | PT6003 | 10017796 | |
| K35-540 | 540 | 564 | 8.1 | 1.8 | 8 | 557.66x6.99 | PT6003 | 10017800 | |
| K35-550 | 550 | 574 | 8.1 | 1.8 | 8 | 557.66x6.99 | PT6003 | 10017804 | |
| K35-560 | 560 | 584 | 8.1 | 1.8 | 8 | 582.68x6.99 | PT6003 | 10017805 | |
| K35-570 | 570 | 594 | 8.1 | 1.8 | 8 | 582.68x6.99 | PT6003 | 10017808 |
