K49
K49 - Kompakt Kolbendichtsatz

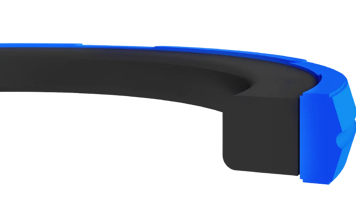

K49 is a two piece double acting sealing set which consists of a hard polyurethane seal ring and an NBR elastomer ring as energizer. It has good sealing ability at heavy duty applications thanks to the PU sealing ring having high resistance against wear, pressure and extrusion as well as NBR energizer ring.
Vorteile
Anwendungsbereich
Vorteile
• High static and dynamic sealing effect
• Simple and small groove design suitable with ISO 7425-1
• Operating without vibration even with low speeds
• No twisting in the house due to profile ring energizer
• Easy installation
• Simple and small groove design suitable with ISO 7425-1
• Operating without vibration even with low speeds
• No twisting in the house due to profile ring energizer
• Easy installation
Anwendungsbereich
• Construction machinery
• Injection moulding machines
• Mobile machinery
• Forklifts
• Agricultural machinery
• Standard industrial cylinders
• Injection moulding machines
• Mobile machinery
• Forklifts
• Agricultural machinery
• Standard industrial cylinders
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
PU
NBR
NBR
PU6001
NB8001
NB8001
400
-30/+100
0.5

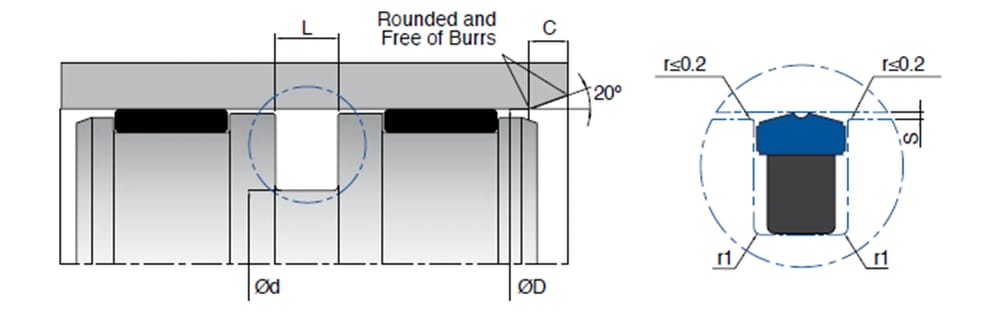

| D (H9) | d (h9) | L (+0.2/-0) | r1 | C | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|---|---|
| K49 025-017.5 | 25 | 17.5 | 3.2 | 0.5 | 2 | PU6001 | 10021121 | |
| K49 028-020.5 | 28 | 20.5 | 3.2 | 0.5 | 2 | PU6001 | 10021122 | |
| K49 032-021 | 32 | 21 | 4.2 | 0.5 | 2.5 | PU6001 | 10021123 | |
| K49 032-024.5 | 32 | 24.5 | 3.2 | 0.5 | 2 | PU6001 | 10021124 | |
| K49 035-024 | 35 | 24 | 4.2 | 0.5 | 2.5 | PU6001 | 10021125 | |
| K49 040-029 | 40 | 29 | 4.2 | 0.5 | 2.5 | PU6001 | 10021126 | |
| K49 045-034 | 45 | 34 | 4.2 | 0.5 | 2.5 | PU6001 | 10021127 | |
| K49 050-039 | 50 | 39 | 4.2 | 0.5 | 2.5 | PU6001 | 10021130 | |
| K49 055-039.5 | 55 | 39.5 | 6.3 | 0.5 | 3 | PU6001 | 10021132 | |
| K49 055-044 | 55 | 44 | 4.2 | 0.5 | 2.5 | PU6001 | 10021133 | |
| K49 060-044.5 | 60 | 44.5 | 6.3 | 0.5 | 3 | PU6001 | 10021135 | |
| K49 060-049 | 60 | 49 | 4.2 | 0.5 | 2.5 | PU6001 | 10021136 | |
| K49 063-047.5 | 63 | 47.5 | 6.3 | 0.5 | 3 | PU6001 | 10021138 | |
| K49 063-052 | 63 | 52 | 4.2 | 0.5 | 2.5 | PU6001 | 10021139 | |
| K49 065-049.5 | 65 | 49.5 | 6.3 | 0.9 | 4 | PU6001 | 10021140 | |
| K49 065-054 | 65 | 54 | 4.2 | 0.9 | 2.5 | PU6001 | 10021141 | |
| K49 070-054.5 | 70 | 54.5 | 6.3 | 0.9 | 4 | PU6001 | 10021142 | |
| K49 070-059 | 70 | 59 | 4.2 | 0.9 | 2.5 | PU6001 | 10021143 | |
| K49 075-059.5 | 75 | 59.5 | 6.3 | 0.9 | 4 | PU6001 | 10021144 | |
| K49 075-064 | 75 | 64 | 4.2 | 0.9 | 2.5 | PU6001 | 10021145 | |
| K49 080-064.5 | 80 | 64.5 | 6.3 | 0.9 | 4 | PU6001 | 10021146 | |
| K49 085-069.5 | 85 | 69.5 | 6.3 | 0.9 | 4 | PU6001 | 10021148 | |
| K49 090-069 | 90 | 69 | 10.5 | 0.9 | 7 | PU6001 | 10021149 | |
| K49 090-074.5 | 90 | 74.5 | 6.3 | 0.9 | 4 | PU6001 | 10021150 | |
| K49 095-079.5 | 95 | 79.5 | 6.3 | 0.9 | 4 | PU6001 | 10021151 | |
| K49 100-079 | 100 | 79 | 8.1 | 0.9 | 5 | PU6001 | 10021152 | |
| K49 100-084.5 | 100 | 84.5 | 6.3 | 0.9 | 4 | PU6001 | 10021154 | |
| K49 105-089.5 | 105 | 89.5 | 6.3 | 0.9 | 4 | PU6001 | 10021156 | |
| K49 110-089 | 110 | 89 | 8.1 | 0.9 | 5 | PU6001 | 10021157 | |
| K49 110-094.5 | 110 | 94.5 | 6.3 | 0.9 | 4 | PU6001 | 10021158 | |
| K49 115-094 | 115 | 94 | 8.1 | 0.9 | 5 | PU6001 | 10021159 | |
| K49 120-099 | 120 | 99 | 8.1 | 0.9 | 5 | PU6001 | 10021160 | |
| K49 120-099/1 | 120 | 99 | 10.5 | 0.9 | 7 | PU6001 | 10021161 | |
| K49 125-104 | 125 | 104 | 8.1 | 0.9 | 5 | PU6001 | 10021162 | |
| K49 125-104/1 | 125 | 104 | 10.5 | 0.9 | 7 | PU6001 | 10021163 | |
| K49 130-109 | 130 | 109 | 8.1 | 0.9 | 5 | PU6001 | 10021164 | |
| K49 140-119 | 140 | 119 | 8.1 | 0.9 | 5 | PU6001 | 10021165 | |
| K49 150-129 | 150 | 129 | 8.1 | 0.9 | 5 | PU6001 | 10021167 | |
| K49 150-129/1 | 150 | 129 | 10.5 | 0.9 | 7 | PU6001 | 10021168 | |
| K49 160-139 | 160 | 139 | 8.1 | 0.9 | 5 | PU6001 | 10021169 | |
| K49 180-159 | 180 | 159 | 8.1 | 0.9 | 5 | PU6001 | 10021170 | |
| K49 200-179 | 200 | 179 | 8.1 | 0.9 | 5 | PU6001 | 10021171 |
