K71 - Führungsring

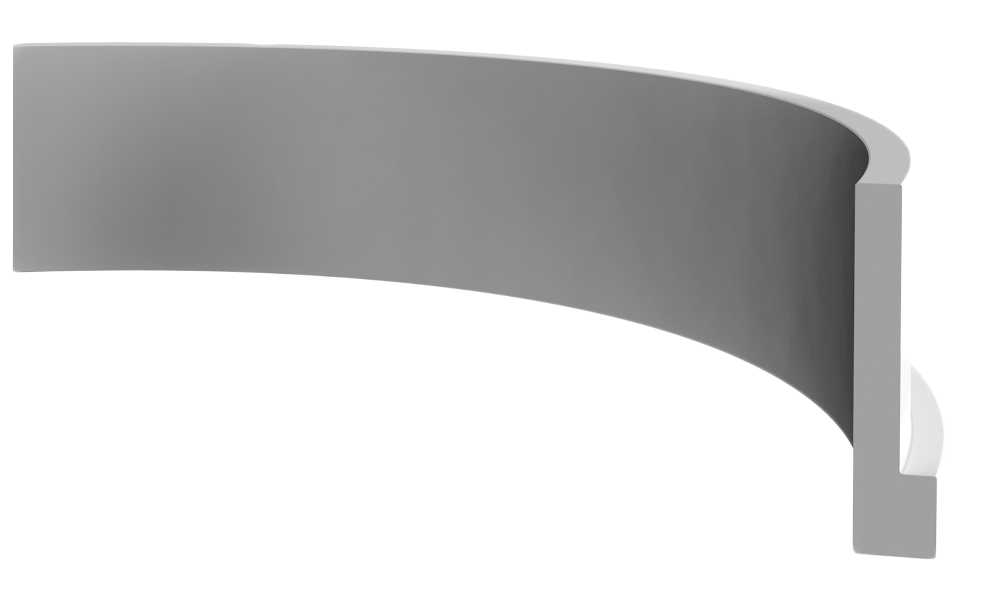

K71 is a «L» formed POM guide ring widely preffered in telescopic cylinders. The dimensions and the quantities may change up to the cylinder strokes. Recommended to use with K33, K38 type rod urings.
Vorteile
Anwendungsbereich
Vorteile
• Flexible guide ring configuration
• Suitable for insufficient lubrication
• Easy installation
• Low coefficient of friction
• High dimensional stability
• Suitable for insufficient lubrication
• Easy installation
• Low coefficient of friction
• High dimensional stability
Anwendungsbereich
• Telescopic cylinders
• Mobile machinery
• Standard industrial cylinders
• Cranes
• Mobile machinery
• Standard industrial cylinders
• Cranes
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
POM
PM9901
-40/+100
1.0
| d (f8) | Db (H11) | D1 (H8) | L (+0.25/-0) | L1 | H | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|---|---|---|
| K71-045 | 45 | 53 | 50 | 8 | 12 | 4 | PM9901 | 10028115 | |
| K71-061 | 61 | 69 | 65 | 8 | 12 | 4 | PM9901 | 10028116 | |
| K71-075 | 75 | 85 | 80 | 10 | 20 | 5 | PM9901 | 10028117 | |
| K71-075/1 | 75 | 85 | 80 | 10 | 25 | 5 | PM9901 | 10028118 | |
| K71-075/2 | 75 | 85 | 81 | 10 | 25 | 5 | PM9901 | 10028119 | |
| K71-095 | 95 | 105 | 100 | 10 | 20 | 5 | PM9901 | 10028120 | |
| K71-095/1 | 95 | 105 | 100 | 10 | 25 | 5 | PM9901 | 10028121 | |
| K71-095/2 | 95 | 105 | 101 | 10 | 25 | 5 | PM9901 | 10028122 | |
| K71-115 | 115 | 125 | 120 | 10 | 20 | 5 | PM9901 | 10028123 | |
| K71-115/1 | 115 | 125 | 120 | 10 | 25 | 5 | PM9901 | 10028124 | |
| K71-115/2 | 115 | 125 | 121 | 10 | 25 | 5 | PM9901 | 10028125 | |
| K71-135 | 135 | 145 | 140 | 10 | 20 | 5 | PM9901 | 10028126 | |
| K71-135/1 | 135 | 145 | 140 | 10 | 25 | 5 | PM9901 | 10028127 | |
| K71-135/2 | 135 | 145 | 141 | 10 | 25 | 5 | PM9901 | 10028128 | |
| K71-160 | 160 | 170 | 165 | 10 | 20 | 5 | PM9901 | 10028129 | |
| K71-160/1 | 160 | 170 | 166 | 10 | 25 | 5 | PM9901 | 10028130 | |
| K71-185 | 185 | 195 | 191 | 10 | 25 | 5 | PM9901 | 10028131 | |
| K71-212 | 212 | 222 | 218 | 10 | 25 | 5 | PM9901 | 10028132 | |
| K71-215 | 215 | 225 | 221 | 10 | 25 | 5 | PM9901 | 10028133 |
