Custom-made Sealing Solutions
JP13

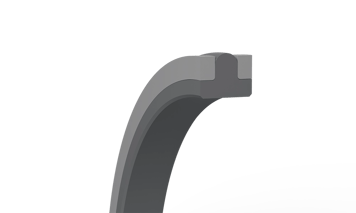

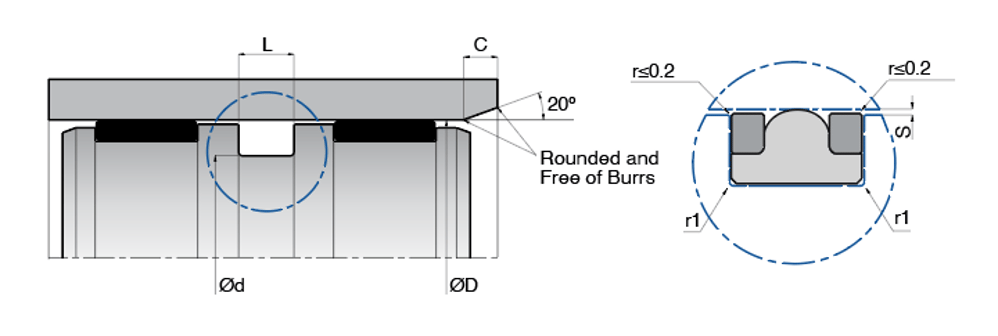

JP13 - PISTON SEALS
1.RING MATERIAL
| MATERIAL CODE |
MATERIAL |
COLOR |
HARDNESS |
OPERATING TEMPERATURE |
APPROVALS |
|---|---|---|---|---|---|
| JPU8801 | PU | Light Green | 90 Shore A | -30 / 115 | - |
| JPU9405 | PU | Dark Red | 95 Shore A | -30 / 105 | - |
| JPU9406 | PU | Blue | 95 Shore A | -50 / 105 | FDA |
| JPU9407 | PU | Red | 95 Shore A | -30 / 125 | FDA |
| JPU9408 | PU | Violet | 95 Shore A | -30 / 115 | FDA |
| JPU9409 | PU | Orange | 95 Shore A | -30 / 135 | - |
| JPU9410 | PU | Light Blue | 95 Shore A | -20 / 90 | FDA |
| JPU9412 | PU | Blue | 95 Shore A | -30 / 125 | FDA |
| JPU5701 | PU | Blue | 57 Shore D | -30 / 90 | FDA |
| JPU5702 | PU | Grey | 57 Shore D | -30 / 90 | - |
| JNB8001 | NBR | Black | 80 Shore A | -50 / 100 | - |
| JNB8501 | NBR | Black | 85 Shore A | -25 / 100 | - |
| JNB8502 | NBR | White | 85 Shore A | -22 / 100 | FDA |
| JEP8001 | EPDM | Blue | 80 Shore A | -40 / 135 | FDA |
| JEP8501 | EPDM | Black | 85 Shore A | -50 / 130 | - |
| JEP8502 | EPDM | White | 85 Shore A | -50 / 100 | FDA |
| JEP8503 | EPDM | Black | 85 Shore A | -40 / 120 | KTW |
| JFK8001 | FKM | Blue | 80 Shore A | -30 / 200 | FDA |
| JFK8501 | FKM | Brown | 85 Shore A | -20 / 210 | - |
| JFK8502 | FKM | Brown | 85 Shore A | -20 / 210 | FDA |
| JFK8503 | FKM | Black | 85 Shore A | -25 / 210 | - |
| JHN8501 | HNBR | Black | 85 Shore A | -25 / 150 | - |
2.RING MATERIAL
| MATERIAL CODE |
MATERIAL |
COLOR |
HARDNESS |
OPERATING TEMPERATURE |
APPROVALS |
|---|---|---|---|---|---|
| JPM9901 | POM | White | - | -60 / 100 | FDA |
| JPA9901 | PA | Cream | - | -30 / 105 | FDA |
| JPK9001 | PEEK | Beige | 90 Shore D | -50 / 250 | FDA |
| PT5501 | PTFE | White | 55 Shore D | -200 / 260 | - |
| PT5505 | PTFE | Black | 55 Shore D | -200 / 260 | - |
| PT5506 | PTFE | Cream | 55 Shore D | -200 / 260 | - |
| PT5507 | PTFE | White | 55 Shore D | -200 / 260 | - |
| PT5508 | PTFE | Blue | 55 Shore D | -200 / 260 | - |
| PT5509 | PTFE | Black | 55 Shore D | -200 / 260 | - |
| PT5511 | PTFE | White | 55 Shore D | -200 / 260 | FDA |
| PT5512 | PTFE | Honey | 56 Shore D | -200 / 260 | - |
| PT6003 | PTFE | Green | 58 Shore D | -200 / 260 | - |
| PT6005 | PTFE | Black | 60 Shore D | -200 / 260 | - |
| PT6008 | PTFE | Brown | 62 Shore D | -200 / 260 | - |
| PT6009 | PTFE | White | 60 Shore D | -200 / 260 | FDA |
| PT6010 | PTFE | Black | 60 Shore D | -200 / 260 | - |
| PT6011 | PTFE | Brown | 60 Shore D | -200 / 260 | - |
| PT6013 | PTFE | Light Blue | 60 Shore D | -200 / 260 | - |
| PT6014 | PTFE | Black | 60 Shore D | -200 / 260 | - |
| PT6017 | PTFE | Dark Grey | 60 Shore D | -200 / 260 | - |
| PT6023 | PTFE | Black | 60 Shore D | -200 / 260 | - |
| PT6024 | PTFE | Dark Grey | 60 Shore D | -200 / 260 | FDA |
| PT6027 | PTFE | Blue | 60 Shore D | -200 / 260 | FDA |
| PT6502 | PTFE | Black | 65 Shore D | -200 / 260 | - |
