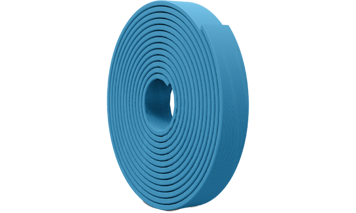

KKB - Guiding Tape
KKB guiding tapes are an advanced solution providing high durability and reliability in linear, oscillating, and slow rotary movements. Their special composite structure, synthesized with optimal process parameters, is manufactured by combining synthetic fibers and polyester resin in ideal proportions. This ensures improved mechanical strength, reduced wear, and superior performance. Available in a wide range of dimensions, KKB guiding tapes o er a durable and e cient guiding solution for demanding hydraulic applications.
Vorteile
Anwendungsbereich
Vorteile
• High load-bearing capacity
• Maintains shape and dimensional stability
• Minimal swelling
• Precision manufacturing with tight
tolerances • Flexible dimensions available (cut-to-size options)
• Maintains shape and dimensional stability
• Minimal swelling
• Precision manufacturing with tight
tolerances • Flexible dimensions available (cut-to-size options)
Anwendungsbereich
• Mobile machinery
• Mining industry
• Excavators
• Presses
• Heavy duty cylinders
• Mining industry
• Excavators
• Presses
• Heavy duty cylinders
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
SYNTHETIC FIBER,
POLYESTER RESIN
POLYESTER RESIN
PR6504
-40/120
1.0
| a | L (+0.2/-0) | H | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|
| KKB-2,5X9,7 | 2.5 | 9.7 | 9.5 | 20008258 | ||
| KKB-2,5X15 | 2.5 | 15 | 14.8 | 20008243 | ||
| KKB-2,5X20 | 2.5 | 20 | 19.8 | 20008257 | ||
| KKB-2,5X25 | 2.5 | 25 | 24.5 | 20008256 | ||
| KKB-3X15 | 3 | 15 | 14.8 | 20008270 | ||
| KKB-3X20 | 3 | 20 | 19.8 | 20008259 | ||
| KKB-3X25 | 3 | 25 | 24.5 | 20008260 | ||
| KKB-4X20 | 4 | 20 | 19.8 | 20008271 | ||
| KKB-4X25 | 4 | 25 | 24.5 | 20008272 |
