KKT - Führungsband

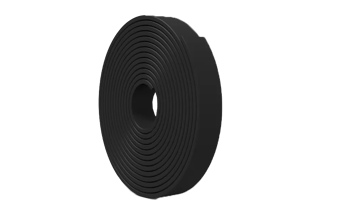

KKT carbon filled PTFE guide strips are guide elements designed to be used in light and medium duty hydraulic and pneumatic systems, for both rod and piston applications. Carbon-filler decreases friction in dry applications.
Vorteile
Anwendungsbereich
Vorteile
• Dry applications
• Moderate load bearing
• Dimensional flexibility
• Stick-slip free
• Very low coefficient of friction
• Able to work on dry conditions
• Moderate load bearing
• Dimensional flexibility
• Stick-slip free
• Very low coefficient of friction
• Able to work on dry conditions
Anwendungsbereich
• Cranes
• Pneumatic Cylinders
• Agricultural machinery
• Standard industrial cylinders
• Automation applications
• Chemical industry
• Pneumatic Cylinders
• Agricultural machinery
• Standard industrial cylinders
• Automation applications
• Chemical industry
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
PTFE
PT6002
-200/+200
15.0
| a | L (+0.2/-0) | H | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|
| KKT-1.5X5.6 | 1.5 | 5.6 | 5.4 | PT6002 | 20001743 | |
| KKT-1.5X8 | 1.5 | 8 | 7.8 | PT6002 | 20001745 | |
| KKT-1.5X9 | 1.5 | 9 | 8.8 | PT6002 | 20001747 | |
| KKT-1.5X10 | 1.5 | 10 | 9.8 | PT6002 | 20001732 | |
| KKT-1.5X12 | 1.5 | 12 | 11.8 | PT6002 | 20001734 | |
| KKT-1.5X15 | 1.5 | 15 | 14.8 | PT6002 | 20001738 | |
| KKT-1.5X20 | 1.5 | 20 | 19.5 | PT6002 | 20001740 | |
| KKT-1.5X25 | 1.5 | 25 | 24.5 | PT6002 | 20001741 | |
| KKT-2X5.6 | 2 | 5.6 | 5.4 | PT6002 | 20001767 | |
| KKT-2X8 | 2 | 8 | 7.8 | PT6002 | 20001768 | |
| KKT-2X9.7 | 2 | 9.7 | 9.5 | PT6002 | 20001770 | |
| KKT-2X10 | 2 | 10 | 9.8 | PT6002 | 20001761 | |
| KKT-2X18 | 2 | 18 | 17.8 | PT6002 | 20001763 | |
| KKT-2X25 | 2 | 25 | 24.5 | PT6002 | 20001765 | |
| KKT-2.5X5.6 | 2.5 | 5.6 | 5.4 | PT6002 | 20001755 | |
| KKT-2.5X9.7 | 2.5 | 9.7 | 9.5 | PT6002 | 20001757 | |
| KKT-2.5X12 | 2.5 | 12 | 11.8 | PT6002 | 20001748 | |
| KKT-2.5X15 | 2.5 | 15 | 14.8 | PT6002 | 20001749 | |
| KKT-2.5X20 | 2.5 | 20 | 19.5 | PT6002 | 20001751 | |
| KKT-2.5X25 | 2.5 | 25 | 24.5 | PT6002 | 20001753 | |
| KKT-2.9X9.7 | 2.9 | 9.7 | 9.5 | PT6002 | 20001759 |
