K516

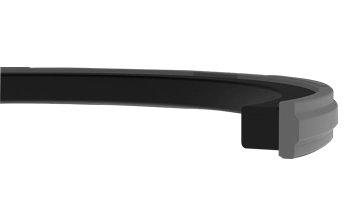

K516 - Piston Seal
K516 is a two piece double acting sealing set which consists of a thermoplastic seal ring and an NBR elastomer ring as energizer. It has good sealing ability thanks to the TPE sealing ring having high resistance against wear, pressure, extrusion.
Vorteile
Anwendungsbereich
Vorteile
• High wear resistance, long service life
• High static and dynamic sealing effect
• No twisting in the house due to energizer ring profile
• Easy installation into closed grooves
• High static and dynamic sealing effect
• No twisting in the house due to energizer ring profile
• Easy installation into closed grooves
Anwendungsbereich
• Injection moulding machines
• Mobile machinery
• Forklifts
• Agricultural machinery
• Standard industrial cylinders
• Mobile machinery
• Forklifts
• Agricultural machinery
• Standard industrial cylinders
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
TPE
NBR
NBR
TP5501, NB7001
350
-40/+100
1

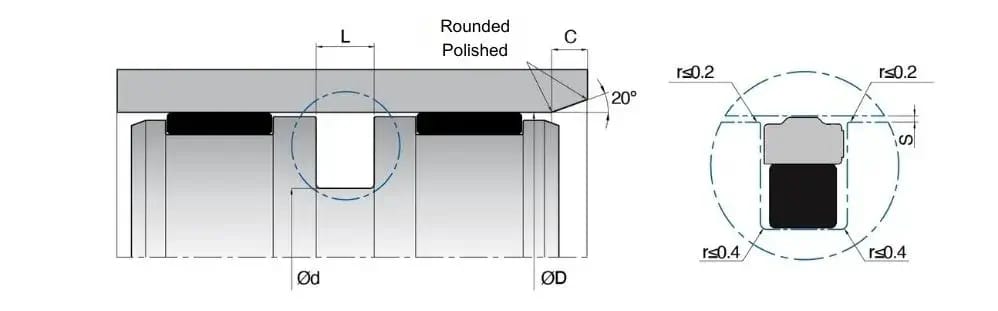

| d (f8) | D (H10) | L (+0.2/-0) | C | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|---|
| K516-025 | 17.55 | 25.4 | 3.28 | 3.8 | TP5501 | 10054286 | |
| K516-031 | 23.9 | 31.75 | 3.28 | 3.8 | TP5501 | 10054290 | |
| K516-038 | 30.25 | 38.1 | 3.28 | 3.8 | TP5501 | 10054291 | |
| K516-044 | 36.6 | 44.45 | 3.28 | 3.8 | TP5501 | 10054293 | |
| K516-050 | 37.13 | 50.8 | 7.19 | 5.1 | TP5501 | 10054294 | |
| K516-050/1 | 42.95 | 50.8 | 3.28 | 3.8 | TP5501 | 10054303 | |
| K516-057 | 49.3 | 57.15 | 3.28 | 3.8 | TP5501 | 10054304 | |
| K516-063 | 49.83 | 63.5 | 7.19 | 5.1 | TP5501 | 10054305 | |
| K516-063/1 | 55.65 | 63.5 | 3.28 | 3.8 | TP5501 | 10054306 | |
| K516-069 | 62 | 69.85 | 3.28 | 3.8 | TP5501 | 10054307 | |
| K516-076 | 62.53 | 76.2 | 7.19 | 5.1 | TP5501 | 10054308 | |
| K516-082 | 68.88 | 82.55 | 7.19 | 5.1 | TP5501 | 10054309 | |
| K516-088 | 75.23 | 88.9 | 7.19 | 5.1 | TP5501 | 10054310 | |
| K516-095 | 81.58 | 95.25 | 7.19 | 5.1 | TP5501 | 10054311 | |
| K516-101 | 87.93 | 101.6 | 7.19 | 5.1 | TP5501 | 10054312 | |
| K516-107 | 94.28 | 107.95 | 7.19 | 5.1 | TP5501 | 10054313 | |
| K516-114 | 100.63 | 114.3 | 7.19 | 5.1 | TP5501 | 10054314 | |
| K516-120 | 106.98 | 120.65 | 7.19 | 5.1 | TP5501 | 10054315 | |
| K516-127 | 113.33 | 127 | 7.19 | 5.1 | TP5501 | 10054316 | |
| K516-133 | 114.4 | 133.35 | 9.6 | 5.1 | TP5501 | 10054317 | |
| K516-139 | 120.75 | 139.7 | 9.6 | 5.1 | TP5501 | 10054318 | |
| K516-146 | 127.1 | 146.05 | 9.6 | 5.1 | TP5501 | 10054319 | |
| K516-152 | 133.45 | 152.4 | 9.6 | 5.1 | TP5501 | 10054320 | |
| K516-158 | 139.8 | 158.75 | 9.6 | 5.1 | TP5501 | 10054321 | |
| K516-165 | 146.15 | 165.1 | 9.6 | 5.1 | TP5501 | 10054322 | |
| K516-177 | 158.85 | 177.8 | 9.6 | 5.1 | TP5501 | 10054323 | |
| K516-184 | 165.2 | 184.15 | 9.6 | 5.1 | TP5501 | 10054324 | |
| K516-190 | 171.55 | 190.5 | 9.6 | 5.1 | TP5501 | 10054325 | |
| K516-203 | 184.25 | 203.2 | 9.6 | 5.1 | TP5501 | 10054326 |
