HEAVY DUTY PRODUCT LINE


K19

High Extrusion Resistance

Low Friction

Low Leakage

Long Service Life

The K19 double-acting compact piston seal has a robust design which contains an elastomer energizer, a PTEE ring and two thermoplastic back-up rings. The design has been a preferred design for a wide range of mobile hydraulic applications with low friction, low extrusion and long service-life properties.

K19 Product Line consist of 3 unique material combinations, which were developed to exceed challenging expectations of modern mobile equipment.

K19 Piston seals are the ultimate piston seal solution for excavators, front-loaders, boom-lifts, cranes and other lift equipment.

Standard K19 is an industry standard piston seal preferred in construction machinery application with its high quality bronze filled PTFE ring

Temperature Range : -30 °C to +105 °C

Pressure : 400 bar

NB8001 Standard NBR

PT6003 High Performance Bronze Filled PTFE

PM9901 Thermoplastic POM Back-up Ring

K19L has been developed for the growing needs for wider temperature range and higher extrusion resistance. Its highly preferred in aerial lifts and telehandlers as well as excavators.

Temperature Range : -40 °C to +120 °C

Pressure : 600 bar

NB8010 Low Temperature NBR

PT6003 High Performance Bronze Filled PTFE

PA9910 High Temperature Resistant PA

K19X is the ultimate piston seal of the productline that oers unmatched extrusion, friction, abrasion resistance while withstanding temperature peaks up to 150°C and pressure peaks up to 600 bar.

Temperature Range : -40 °C to +150 °C

Pressure : 600 bar

HB8005 Low Temperature HNBR

PT6023 Abrasion Resistant Carbon Fiber Filled Modified PTFE

PA9910 High Temperature Resistant PA



AREAS OF APPLICATIONS

CONSTRUCTION MACHINERY
EXCAVATORS

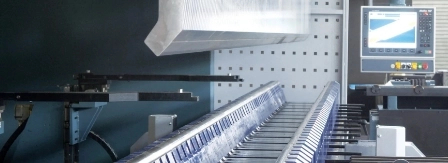

PRESS

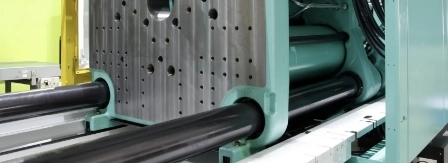

INJECTION MOULDING MACHINES
HYDRAULIC CYLINDERS
