K114

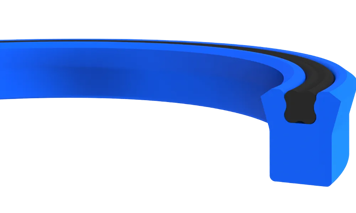

K114 - Piston Rod Seal
K114 piston-rod seal is a single acting sealing element which is able to work both at piston and rod applications thanks to symetrical design.
Advantages
Area of Application
Advantages
• Superior static and dynamic sealing performance
• Low leakage under variable pressure levels
• High and sustainable preload due to x-ring
• High abrasion resistance
• Low leakage under variable pressure levels
• High and sustainable preload due to x-ring
• High abrasion resistance
Area of Application
• Mining industry
• Iron and steel industry
• Scrap metal presses
• Mobile machinery
• Marine hydraulics
• Iron and steel industry
• Scrap metal presses
• Mobile machinery
• Marine hydraulics
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
PU
NBR
NBR
PU9404
NB7001
NB7001
400
-30/+105
0.5

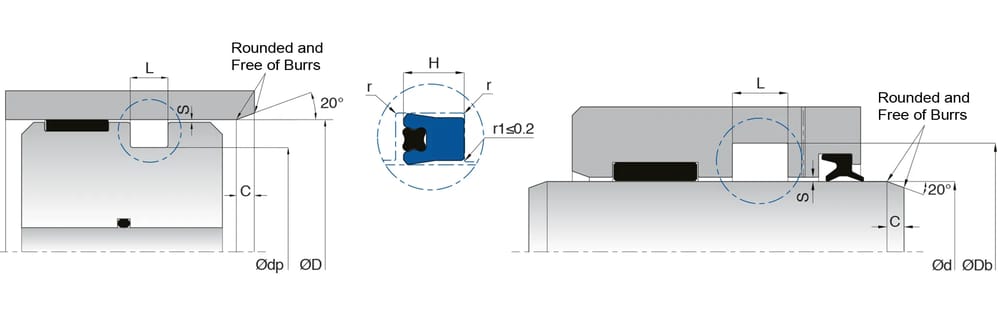

| d(f8) dp(h9) | Db(H10) D(H10) | L (+0.2/-0) | H | r | C | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|---|---|---|
| K114-030 | 30 | 40 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002240 | |
| K114-035 | 35 | 45 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002241 | |
| K114-040 | 40 | 50 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002242 | |
| K114-045 | 45 | 60 | 11 | 10 | 0.4 | 6 | PU9404 | 10002243 | |
| K114-045/1 | 45 | 55 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002245 | |
| K114-050 | 50 | 60 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002246 | |
| K114-050/1 | 50 | 60 | 11 | 10 | 0.2 | 5.5 | PU9404 | 10002247 | |
| K114-053 | 53 | 63 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002248 | |
| K114-055 | 55 | 65 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002249 | |
| K114-060 | 60 | 70 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002250 | |
| K114-063 | 63.5 | 76.2 | 10.53 | 9.53 | 0.4 | 6 | PU9404 | 10002251 | |
| K114-065 | 65 | 75 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002252 | |
| K114-070 | 70 | 80 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002253 | |
| K114-075 | 75 | 85 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002254 | |
| K114-080 | 80 | 90 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002255 | |
| K114-085 | 85 | 100 | 10 | 9 | 0.4 | 6 | PU9404 | 10002256 | |
| K114-165 | 165 | 180 | 10 | 9 | 0.4 | 6 | PU9404 | 10002257 | |
| K114-187 | 187.33 | 200.03 | 7.5 | 6.5 | 0.4 | 6 | PU9404 | 10002258 |
