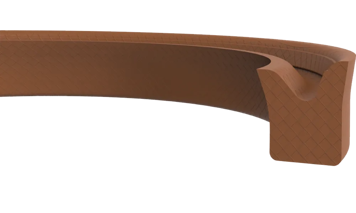

K152 - Low Pressure Chevron Seal
K152 sealing elements are single acting rod seals made by water resistant fabric impregnated elastomer, specially designed for water and wateroil mixture. They are low pressure pump seals working at pressure washers.
Advantages
Area of Application
Advantages
• High speeds
• Water compatibility and low swelling
• Long service life
• Adjustable housing
• Water compatibility and low swelling
• Long service life
• Adjustable housing
Area of Application
• Pressure washers
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
FABRIC NBR
FB8502
PM9901
PM9901
80
-30/+80
2.0

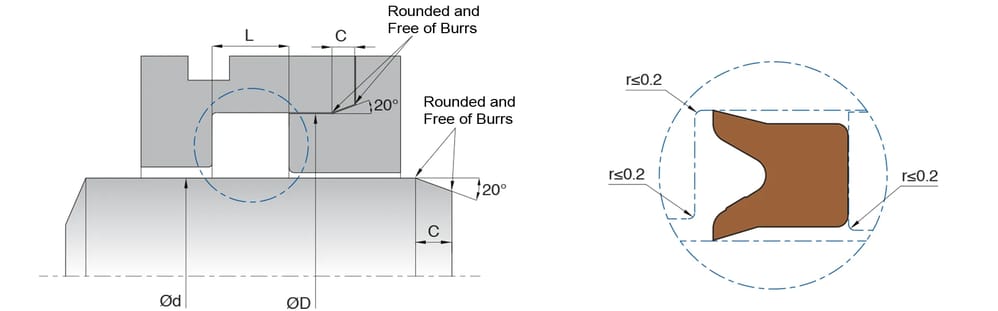

| d (f7) | D (H9) | L (+0.2/-0) | C | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|---|
| K152-012 | 12 | 20 | 5.8 | 5 | FB8502 | 10002435 | |
| K152-012/1 | 12 | 20 | 5.6 | 5 | FB8502 | 10002437 | |
| K152-013 | 13 | 20 | 5 | 4.5 | FB8502 | 10002441 | |
| K152-014 | 14 | 22 | 6.5 | 5 | FB8502 | 10002442 | |
| K152-014/1 | 14 | 22 | 5.7 | 5 | FB8502 | 10002443 | |
| K152-015 | 15 | 24 | 5.5 | 5 | FB8502 | 10002447 | |
| K152-016 | 16 | 24 | 6.5 | 5 | FB8502 | 10002448 | |
| K152-016/1 | 16 | 24 | 5.8 | 5 | FB8502 | 10002449 | |
| K152-016/2 | 16 | 24 | 5.2 | 5 | FB8502 | 10002450 | |
| K152-018 | 18 | 26 | 6.5 | 5 | FB8502 | 10002452 | |
| K152-018/1 | 18 | 26 | 6 | 5 | FB8502 | 10002453 | |
| K152-018/2 | 18 | 25 | 5 | 5 | FB8502 | 10002456 | |
| K152-018/3 | 18 | 26 | 5 | 5 | FB8502 | 10002457 | |
| K152-020 | 20 | 28 | 6 | 5 | FB8502 | 10002458 | |
| K152-022 | 22 | 30 | 6 | 5 | FB8502 | 10002460 | |
| K152-024 | 24 | 32 | 6 | 5 | FB8502 | 10002461 | |
| K152-024/1 | 24 | 34 | 6 | 6 | FB8502 | 10002462 | |
| K152-025 | 25 | 33 | 4.8 | 5 | FB8502 | 10002463 | |
| K152-026 | 26 | 32 | 7.2 | 4 | FB8502 | 10002465 | |
| K152-026/1 | 26 | 33 | 4.8 | 4.5 | FB8502 | 10002466 | |
| K152-030 | 30 | 38 | 6 | 5 | FB8502 | 10002467 | |
| K152-040 | 40 | 50 | 6 | 6 | FB8502 | 10002468 | |
| K152-042 | 42 | 50 | 6 | 5 | FB8502 | 10002469 |
