K57 - Pneumatic Piston Seal
K57 pneumatic piston seal is a double acting piston seal formed by vulcanizing the metal part and the elastomer material together with special methods.
Advantages
Area of Application
Advantages
• No need for machined piston head
• Its design with venting passages provides end-of-stroke cushioning
• Perfect adaptation to sudden pressure changes thanks to venting passages.
• Easy installation
• Its design with venting passages provides end-of-stroke cushioning
• Perfect adaptation to sudden pressure changes thanks to venting passages.
• Easy installation
Area of Application
• Pneumatic Cylinders
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
NBR
ALIMINUM
ALIMINUM
NB7001
AL9901
AL9901
12
-30/+105
1.0

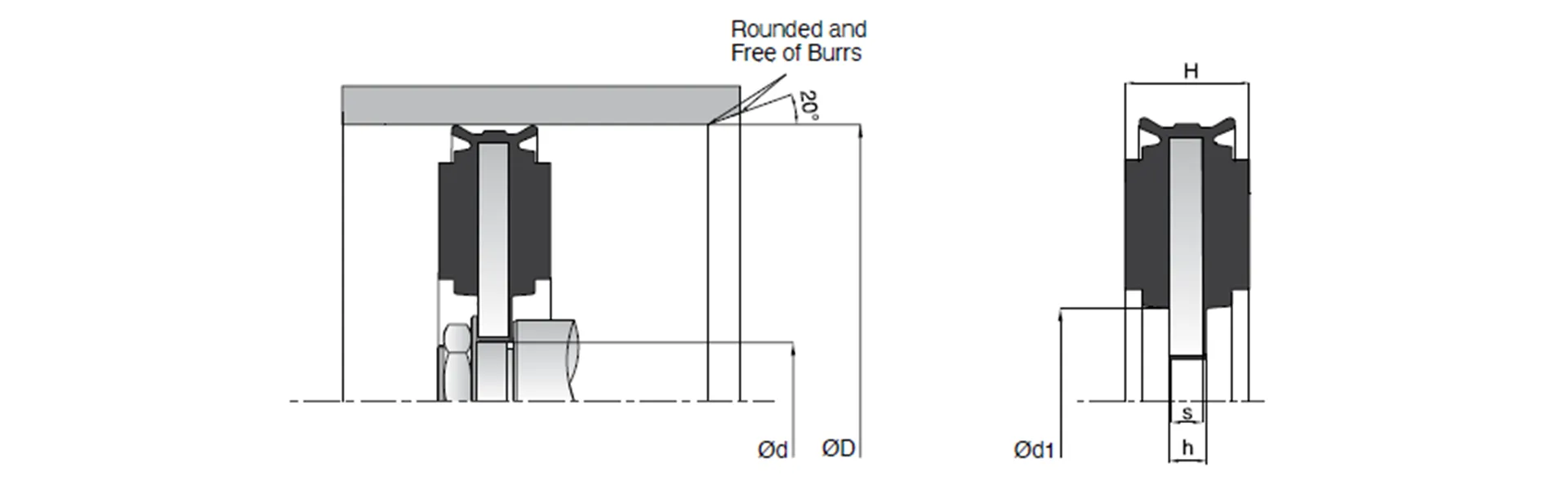

| D (H11) | d (h10) | H | d1 | h | s | MATERIAL | Kastaş CODE | ||
|---|---|---|---|---|---|---|---|---|---|
| K57-010 | 10 | 3 | 5 | 5.2 | 1.8 | 1.5 | NB7001 | 10022023 | |
| K57F-010 | 10 | 3 | 5 | 5.2 | 1.8 | 1.5 | NB7001 | 10022044 | |
| K57-012 | 12 | 4.5 | 6 | 6.9 | 2.3 | 2 | NB7001 | 10022024 | |
| K57F-012 | 12 | 4.5 | 6 | 6.9 | 2.3 | 2 | NB7001 | 10022045 | |
| K57-016 | 16 | 4.5 | 6.5 | 6.9 | 2.3 | 2 | NB7001 | 10022025 | |
| K57F-016 | 16 | 4.5 | 6.5 | 6.9 | 2.3 | 2 | NB7001 | 10022047 | |
| K57-020 | 20 | 6 | 7.5 | 9.4 | 2.8 | 2.5 | NB7001 | 10022027 | |
| K57F-020 | 20 | 6 | 7.5 | 9.4 | 2.8 | 2.5 | NB7001 | 10022048 | |
| K57-025 | 25 | 7 | 8.8 | 10.8 | 3.5 | 3 | NB7001 | 10022030 | |
| K57F-025 | 25 | 7 | 8.8 | 10.8 | 3.5 | 3 | NB7001 | 10022050 | |
| K57-032 | 32 | 8 | 11 | 12.5 | 3.5 | 3 | NB7001 | 10022033 | |
| K57F-032 | 32 | 8 | 11 | 12.5 | 3.5 | 3 | NB7001 | 10022052 | |
| K57-040 | 40 | 8 | 11.8 | 17 | 4.5 | 4 | NB7001 | 10022035 | |
| K57F-040 | 40 | 8 | 11.8 | 17 | 4.5 | 4 | NB7001 | 10022053 | |
| K57-050 | 50 | 10 | 14 | 26 | 4.5 | 4 | NB7001 | 10022037 | |
| K57F-050 | 50 | 10 | 14 | 26 | 4.5 | 4 | NB7001 | 10022054 | |
| K57-063 | 63 | 12 | 14 | 26 | 4.5 | 4 | NB7001 | 10022039 | |
| K57F-063 | 63 | 12 | 14 | 26 | 4.5 | 4 | NB7001 | 10022055 | |
| K57-080 | 80 | 16 | 16 | 30 | 5.5 | 5 | NB7001 | 10022041 | |
| K57F-080 | 80 | 16 | 16 | 30 | 5.5 | 5 | NB7001 | 10022056 | |
| K57-100 | 100 | 20 | 18 | 35 | 6.5 | 6 | NB7001 | 10022042 | |
| K57F-100 | 100 | 20 | 18 | 35 | 6.5 | 6 | NB7001 | 10022057 |
