K762

K762 is a double acting PTFE piston seal consists of a PTFE sealing ring and energizer elastomer profile ring. Similar to K17, K762 is a preffered sealing solution in mobile machinery and lifting equipment.

Advantages

• Low friction and no stick-slip
• High sealing performance
• Long service life
• Good extrusion resistance

Area of Application

• Cranes
• Injection moulding machines
• Hydraulic press cylinders
• Forklifts
• Construction machinery
Material
Code
Pressure
(max) bar
Temperature
(max) °C
Sliding Speed
(max)- m/s
PTFE
NBR
PT6003
NB8001
400
-30/+105
5.0

SELECT FILTER

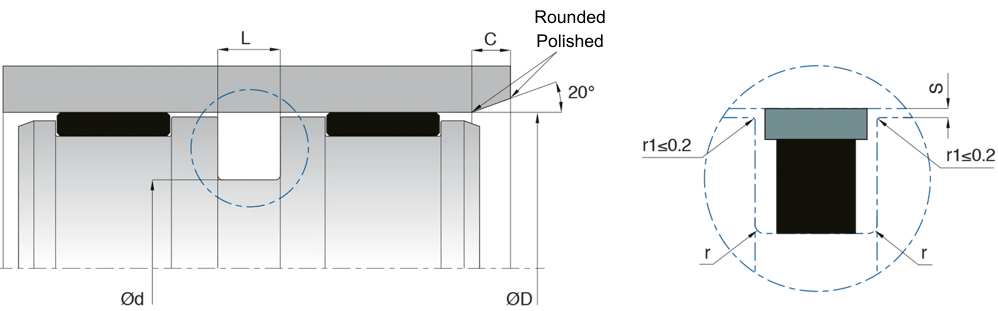

  D (H8) d (h9) L (+0.2/-0) r C MATERIAL Kastaş CODE
K762 045-035 45 35 4.5 0.4 5 PT6003 10028538
K762 075-060 75 60 7.5 0.4 5 PT6003 10028541
K762 080-065 80 65 7.5 0.4 5 PT6003 10028542
K762 085-070 85 70 7.5 0.4 5 PT6003 10028543
K762 090-075 90 75 7.5 0.4 5 PT6003 10028544
K762 095-080 95 80 7.5 0.4 5 PT6003 10028546
K762 100-085 100 85 7.5 0.4 5 PT6003 10028548
K762 290-266 290 266 12 0.4 7.5 PT6003 10028554
