K920
K920 - Piston Boğaz Keçesi

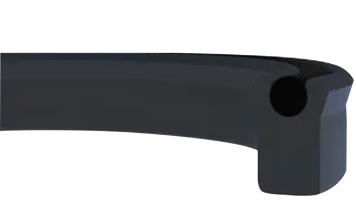

K920 piston-boğaz keçesi, özel olarak şekillendirilmiş poliüretan nutring ve elastomer o-ringden oluşan tek etkili bir hidrolik sızdırmazlık elemanıdır. K920 simetrik tasarımı sayesinde hem piston hem de boğaz uygulamalarında kullanılabilir.
Avantajları
Uygulama Alanları
Avantajları
• Tasarımında bulunan o-ring ile düşük basınçlarda ve vakum oluşan sistemlerde güvenli kullanım
• Statik (kilitleme) ve uzun süreli duruş olan sistemlede çok iyi sızdırmazlık
• TPU nutring sayesinde yüksek aşınma dayanımı"
• Statik (kilitleme) ve uzun süreli duruş olan sistemlede çok iyi sızdırmazlık
• TPU nutring sayesinde yüksek aşınma dayanımı"
Uygulama Alanları
• Mobil hidrolik
• İş makinaları
• Hidrolik presler
• Genel endüstriyel silindirler
• Tarım makinaları"
• İş makinaları
• Hidrolik presler
• Genel endüstriyel silindirler
• Tarım makinaları"
Malzeme
Kodu
Basınç
(max) bar
(max) bar
Sıcaklık
(max) °C
(max) °C
Kayma Hızı
(max)- m/s
(max)- m/s
PU
NBR
NBR
PU9412
NB7001
NB7001
300
-30/+100°C
0.5

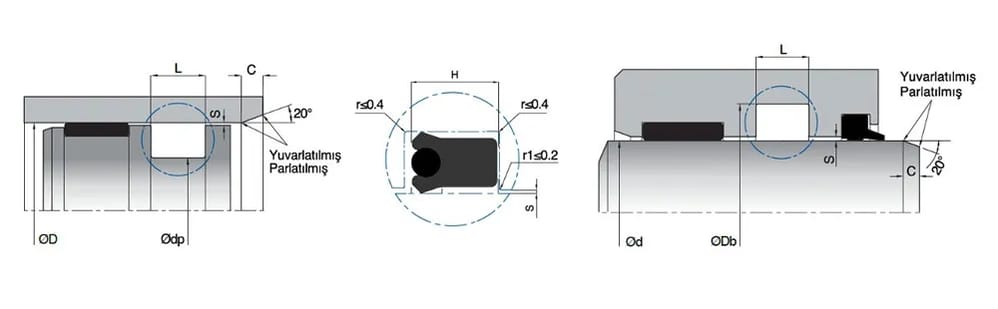

| d(f7) dp(h11) | Db(H10) D(H10) | L (+0.2/-0) | H | C | MALZEME | KASTAŞ KOD | ||
|---|---|---|---|---|---|---|---|---|
| K920-003 | 3.18 | 9.53 | 7 | 6.25 | 3.5 | PU9412 S | 10054454 | |
| K920-004 | 4.76 | 11.11 | 7 | 6.25 | 3.5 | PU9412 S | 10054455 | |
| K920-006 | 6.35 | 12.7 | 7 | 6.25 | 3.5 | PU9412 S | 10054457 | |
| K920-007 | 7.94 | 14.29 | 7 | 6.25 | 3.5 | PU9412 S | 10054460 | |
| K920-009 | 9.53 | 15.88 | 7 | 6.25 | 3.5 | PU9412 S | 10054472 | |
| K920-009/1 | 9.53 | 15.88 | 5,23 | 4.67 | 3.5 | PU9412 S | 10054475 | |
| K920-011 | 11.1 | 17.45 | 7 | 6.25 | 3.5 | PU9412 S | 10054487 | |
| K920-012 | 12.7 | 19.05 | 7 | 6.25 | 3.5 | PU9412 S | 10054491 | |
| K920-014 | 14.27 | 20.62 | 7 | 6.25 | 3.5 | PU9412 S | 10054495 | |
| K920-015 | 15.88 | 25.4 | 8,71 | 7.81 | 5.58 | PU9412 S | 10054497 | |
| K920-015/1 | 15.88 | 22.23 | 5,23 | 4.67 | 3.5 | PU9412 S | 10054498 | |
| K920-019 | 19.05 | 25.4 | 7 | 6.25 | 3.5 | PU9412 S | 10054503 | |
| K920-019/1 | 19.05 | 25.4 | 5,23 | 4.67 | 3.5 | PU9412 S | 10054504 | |
| K920-019/2 | 19.05 | 25.4 | 3,5 | 3.12 | 3.5 | PU9412 S | 10054505 | |
| K920-022 | 22.23 | 28.58 | 7 | 6.25 | 3.5 | PU9412 S | 10054509 | |
| K920-022/1 | 22.23 | 28.58 | 3,5 | 3.12 | 3.5 | PU9412 S | 10054510 | |
| K920-025 | 25.4 | 31.75 | 7 | 6.25 | 3.5 | PU9412 S | 10054514 | |
| K920-025/1 | 25.4 | 31.75 | 5,23 | 4.67 | 3.5 | PU9412 S | 10054515 | |
| K920-025/2 | 25.4 | 31.75 | 3,5 | 3.12 | 3.5 | PU9412 S | 10054516 | |
| K920-025/3 | 25.4 | 34.93 | 8,71 | 7.81 | 5.58 | PU9412 S | 10054517 | |
| K920-028 | 28.58 | 34.93 | 7 | 6.25 | 3.5 | PU9412 S | 10054528 | |
| K920-028/1 | 28.58 | 38.1 | 8,71 | 7.81 | 5.58 | PU9412 S | 10054529 | |
| K920-031 | 31.75 | 38.1 | 7 | 6.25 | 3.5 | PU9412 S | 10054533 | |
| K920-031/1 | 31.75 | 38.1 | 5,23 | 4.67 | 3.5 | PU9412 S | 10054534 | |
| K920-031/2 | 31.75 | 41.28 | 8,71 | 7.81 | 5.58 | PU9412 S | 10054535 | |
| K920-033 | 33.34 | 39.69 | 5,23 | 4.67 | 3.5 | PU9412 S | 10054544 | |
| K920-034 | 34.93 | 44.45 | 8,71 | 7.81 | 5.58 | PU9412 S | 10054545 | |
| K920-034/1 | 34.93 | 41.28 | 5,23 | 4.45 | 3.5 | PU9412 S | 10054547 | |
| K920-034/2 | 34.93 | 41.28 | 7 | 6.25 | 3.5 | PU9412 S | 10054548 | |
| K920-034/3 | 34.93 | 47.63 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054549 | |
| K920-038 | 38.1 | 47.63 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054551 | |
| K920-038/1 | 38.1 | 50.8 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054552 | |
| K920-038/2 | 38.1 | 44.45 | 7 | 6.25 | 3.5 | PU9412 S | 10054553 | |
| K920-038/3 | 38.1 | 47.63 | 5,23 | 4.67 | 5.58 | PU9412 S | 10054554 | |
| K920-038/4 | 38.1 | 47.63 | 7 | 6.25 | 5.58 | PU9412 S | 10054555 | |
| K920-038/5 | 38.1 | 47.63 | 8,71 | 7.81 | 5.58 | PU9412 S | 10054556 | |
| K920-038/6 | 38.1 | 50.8 | 7 | 6.25 | 5.58 | PU9412 S | 10054557 | |
| K920-041 | 41.28 | 50.8 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054563 | |
| K920-041/1 | 41.28 | 50.8 | 8,71 | 7.81 | 5.58 | PU9412 S | 10054564 | |
| K920-044 | 44.45 | 53.98 | 8,71 | 7.81 | 5.58 | PU9412 S | 10054567 | |
| K920-044/1 | 44.45 | 53.98 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054568 | |
| K920-044/2 | 44.45 | 57.15 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054571 | |
| K920-047 | 47.63 | 57.15 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054572 | |
| K920-050 | 50.8 | 63.5 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054574 | |
| K920-050/1 | 50.8 | 57.15 | 5,23 | 4.67 | 3.5 | PU9412 S | 10054580 | |
| K920-050/2 | 50.8 | 60.33 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054581 | |
| K920-053 | 53.98 | 63.5 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054583 | |
| K920-057 | 57.15 | 69.85 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054584 | |
| K920-060 | 60.33 | 73.03 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054587 | |
| K920-063 | 63.5 | 76.2 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054591 | |
| K920-066 | 66.68 | 79.38 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054594 | |
| K920-069 | 69.85 | 79.38 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054596 | |
| K920-069/1 | 69.85 | 82.55 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054597 | |
| K920-076 | 76.2 | 88.9 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054605 | |
| K920-082 | 82.55 | 101.6 | 17,5 | 15.62 | 6,28 | PU9412 S | 10054608 | |
| K920-082/1 | 82.55 | 95.25 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054609 | |
| K920-085 | 85.73 | 104.78 | 17,5 | 15.62 | 6,28 | PU9412 S | 10054610 | |
| K920-085/1 | 85.73 | 98.43 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054611 | |
| K920-088 | 88.9 | 101.6 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054612 | |
| K920-088/1 | 88.9 | 104.78 | 14 | 12.5 | 5,93 | PU9412 S | 10054613 | |
| K920-092 | 92.08 | 107.95 | 14 | 12.5 | 5,93 | PU9412 S | 10054618 | |
| K920-095 | 95.25 | 107.95 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054621 | |
| K920-095/1 | 95.25 | 114.3 | 17,5 | 15.62 | 6,28 | PU9412 S | 10054622 | |
| K920-101 | 101.6 | 114.3 | 15,33 | 14.06 | 5.58 | PU9412 S | 10054624 | |
| K920-101/1 | 101.6 | 114.3 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054625 | |
| K920-104 | 104.78 | 120.65 | 15,33 | 14.06 | 5,93 | PU9412 S | 10054627 | |
| K920-104/1 | 104.78 | 117.48 | 15,33 | 14.06 | 5.58 | PU9412 S | 10054628 | |
| K920-107 | 107.95 | 127 | 17,5 | 15.62 | 6,28 | PU9412 S | 10054630 | |
| K920-107/1 | 107.95 | 120.65 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054631 | |
| K920-114 | 114.3 | 133.35 | 17,5 | 15.62 | 6,28 | PU9412 S | 10054635 | |
| K920-117 | 117.48 | 133.35 | 17,5 | 15.62 | 5,93 | PU9412 S | 10054639 | |
| K920-120 | 120.65 | 139.7 | 17,5 | 15.62 | 6,28 | PU9412 S | 10054641 | |
| K920-120/1 | 120.65 | 133.35 | 10,5 | 9.37 | 5.58 | PU9412 S | 10054642 | |
| K920-120/2 | 120.65 | 133.35 | 15,33 | 14.06 | 5.58 | PU9412 S | 10054643 | |
| K920-139 | 139.7 | 152.4 | 15,33 | 14.06 | 5.58 | PU9412 S | 10054647 |
